N2XS2Y 1x120/16mm² 20.3/35kV Cables

N2XS2Y 1x120/16mm² 20.3/35kV Cables

This product has no valid combination.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

20.3/35kV Single-core XLPE-insulated cables with PE sheath

DESCRIPTION

APPLICATION:

Our Medium Voltage Cable can be placed in the following areas

Outdoors
In the ground
Inside and outside of buildings

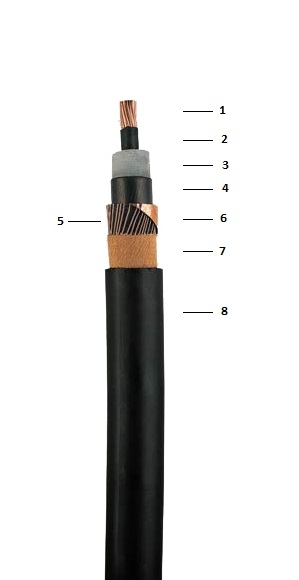

CONSTRUCTION:

Multi-stranded copper conductor
Internal semi-conductor
Insulatıon:XLPE
External semi-conductor
Semiconductor tape
Copper screen
Polyester tape
Outer Sheath:PVC

MARKING:

BAKU CABLE GOKNUR

Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor shape Circular stranded (RM)
Insulation XLPE (chemical)
Lead free Yes
Halogen free Yes
USAGE CHARACTERISTICS
Packaging Drum
Minimum operating temperature -40°C
Minimum installation temperature -20°C
Bending factor when laying 15(xD)
Max. conductor temperature in service 90°C
Short-circuit max. conductor temperature 250°C
