N2XS2Y 1x120/16mm² 20.3/35kV Kabel

N2XS2Y 1x120/16mm² 20.3/35kV Kabel

https://www.megaaz.com/web/image/product.template/15227/image_1920?unique=888470e

Bu məhsulun işlək kombinasyonu yoxdur.

Bizimlə Əlaqə Saxlayın

Şərtlər və Qaydalar
30 günlük pulun geri qaytarılma zəmanəti
Çatdırılma: 2-3 iş günü

Paylaşın


Description

20.3/35kV Single-core XLPE-insulated cables with PE sheath


DESCRIPTION

APPLICATION:

Our Medium Voltage Cable can be placed in the following areas

  • Outdoors
  • In the ground
  • Inside and outside of buildings

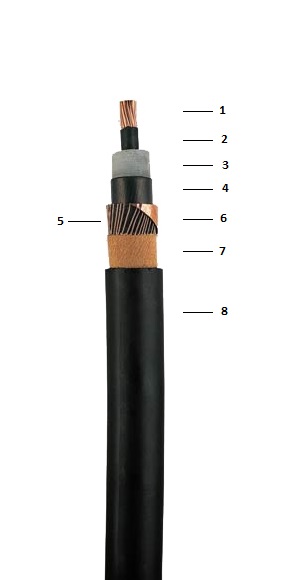

CONSTRUCTION:



  1. Multi-stranded copper conductor
  2. Internal semi-conductor
  3. Insulatıon:XLPE
  4. External semi-conductor
  5. Semiconductor tape
  6. Copper screen
  7. Polyester tape
  8. Outer Sheath:PVC



   MARKING:

       BAKU CABLE GOKNUR

   Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor shapeCircular stranded (RM)
InsulationXLPE (chemical)
Lead freeYes
Halogen freeYes
USAGE CHARACTERISTICS
PackagingDrum
Minimum operating temperature-40°C
Minimum installation temperature-20°C
Bending factor when laying15(xD)
Max. conductor temperature in service90°C
Short-circuit max. conductor temperature250°C
