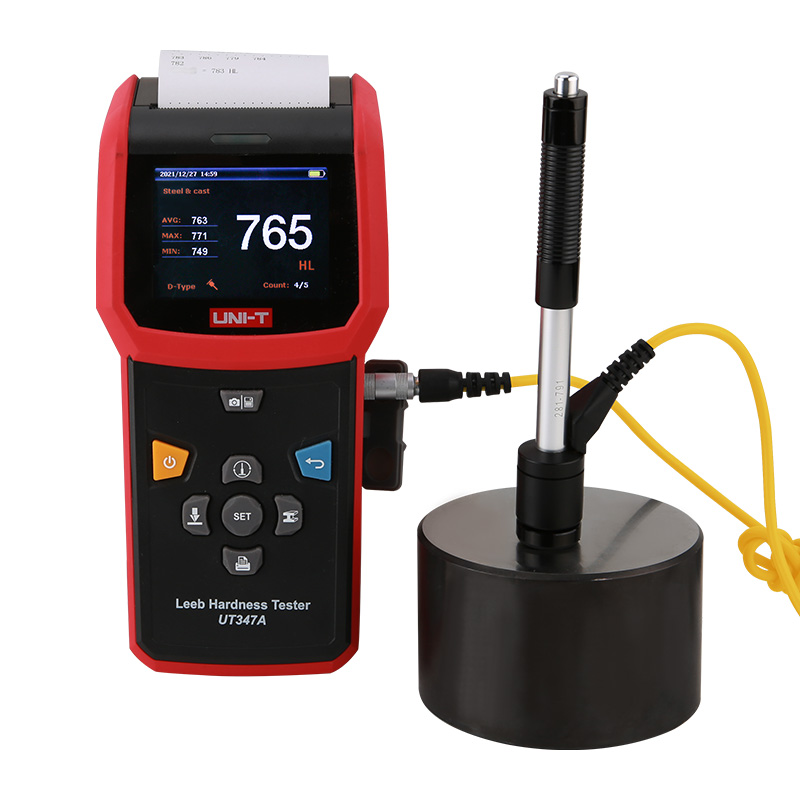

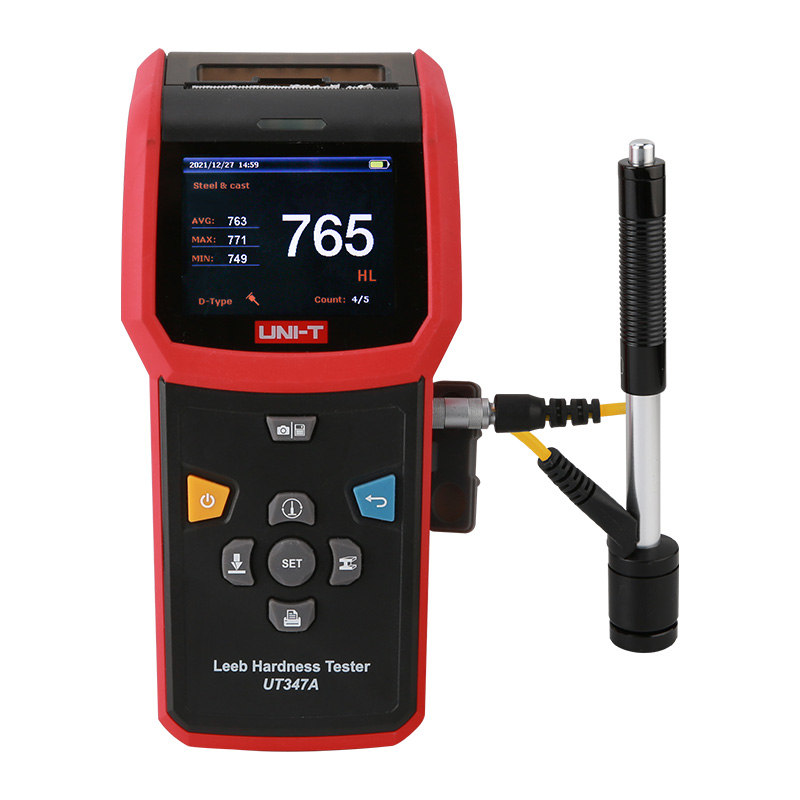

UT347A Leeb Hardness Tester UNI-TREND

https://www.megaaz.com/web/image/product.template/35176/image_1920?unique=9caac6d

UT347A Leeb Hardness Tester UNI-TREND

774.9800 AZN 774.98 AZN 774.9800 AZN

774.9800 AZN

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Product description

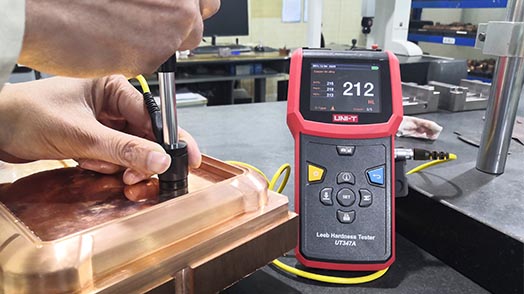

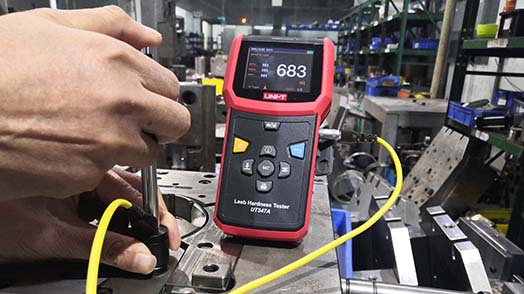

    UT347A Leeb Hardness Tester is accurate and portable in size. It supports thermal printing and is especially suitable for field hardness testing of large equipment such as roller turboshaft, pressure vessel and turbine set. Widely used in petrochemical, electric power, automobile, shipbuilding, machinery manufacturing and other industries.


    Features of UT347A Leeb Hardness Tester

    Certificates: CE (In processing), UKCA

    ● 6 kinds of hardness values (HL, HB, HRC, HRB, HV, HS) is a real-time measurement
    ● One hardness tester can be equipped with 7 different impact devices● Automatic identification without calibration when replacing impact device
    ● Statistical, multi-unit, line chart, histogram 4 measurement modes
    ● Camera: 640×480 pixels (900 BMP format pictures could be stored)● Automatic alarm when the upper and lower limits are exceeded● Adjustable backlight brightness● Mobile phone Bluetooth APP and PC software analysis data● Support thermal printing● Tri-color LED indication and LED flashlight

    Specifications of UT347A Leeb Hardness Tester

    Specifications
    FunctionsImpact device typeStandard Richter block hardness valueResolutionError valueIndication repeatabilityinstructions
    Hardness measurementD790±40HLD1HLD±6HLD6HLDStandard hardness blocks: 1. Standard D-type Richter hardness blocks A grade uniformity ±1HLD; 2. Standard G Type Richter Hardness blocks, grade A uniformity ±1HLG;
    530±40HLD±10HLD10HLD
    DC790±40HLDC1HLDC±6HLDC6HLDC
    530±40HLDC±10HLDC10HLDC
    DL894±40HLDL1HLDL±12HLDL12HLDL
    736±40HLDL
    D+15795±40HLD+151HLD+15±12HLD+1512HLD+15
    544±40HLD+15
    G590±40HLG1HLG±12HLG12HLG
    500±40HLG
    E755±40HLE1HLE±12HLE12HLE
    508±40HLE
    C851±40HLC1HLC±12HLC12HLC
    590±40HLC
    CertificatesCE (In processing), UKCA
    Display screen2.8-inch 320*240 graphic dot matrix color TFT screen.
    Material selectionSteel and cast steel, alloy tool steel, stainless steel, forged steel, cast aluminum alloy, copper zinc alloy, copper tin alloy, gray cast iron, nodular cast iron, pure copper; Select the appropriate material for measurement.
    Hardness scale HL, HB,  HRC,  HRB,  HV, HS
    Strengthσb(tensile strength)
    Impact direction0°、45°、90°、135°、180°A total of 5 impact directions
    Measurement modeStatistical, multi-unit, line chart, histogram
    Statistical measureMax/Min/Avg
    Thermal printing57mm width thermal printing pape
    Data storage900groups
    Voice prompt
    Bluetooth APP function
    USB Communication
    PC analysis software
    Auto power offCan be set: 1/ 5 / 10 /30 minutes or cancel
    Low battery indication
    External power sourcePower adapter requirements: DC5V 2A Type-c connector.
    Charging timeAbout:2~4h
    Battery3.7V 2500mAh polymer rechargeable lithium battery.
    Drop test1m


    Download Manual
