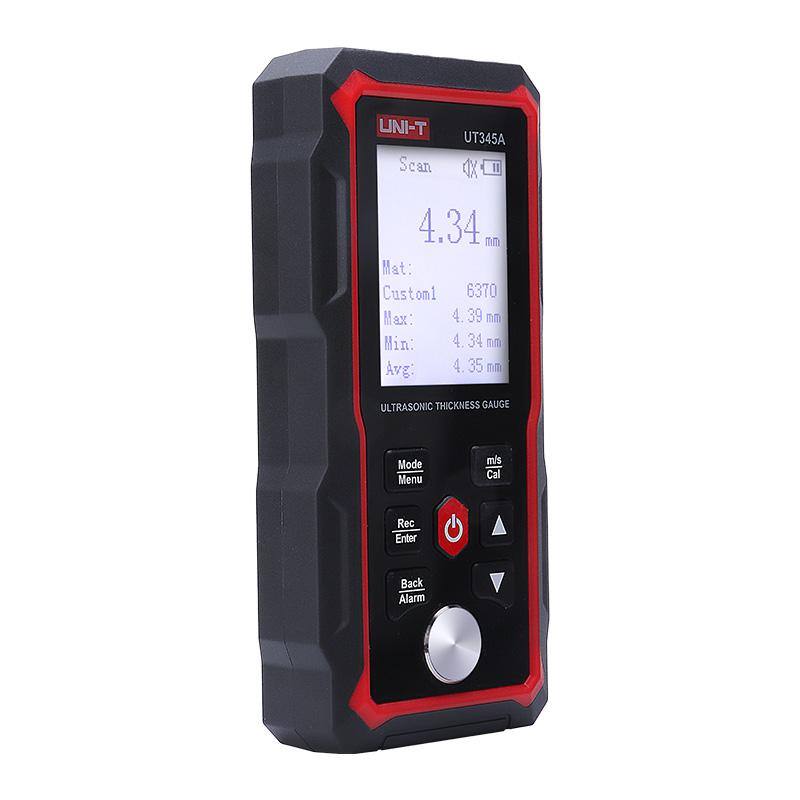

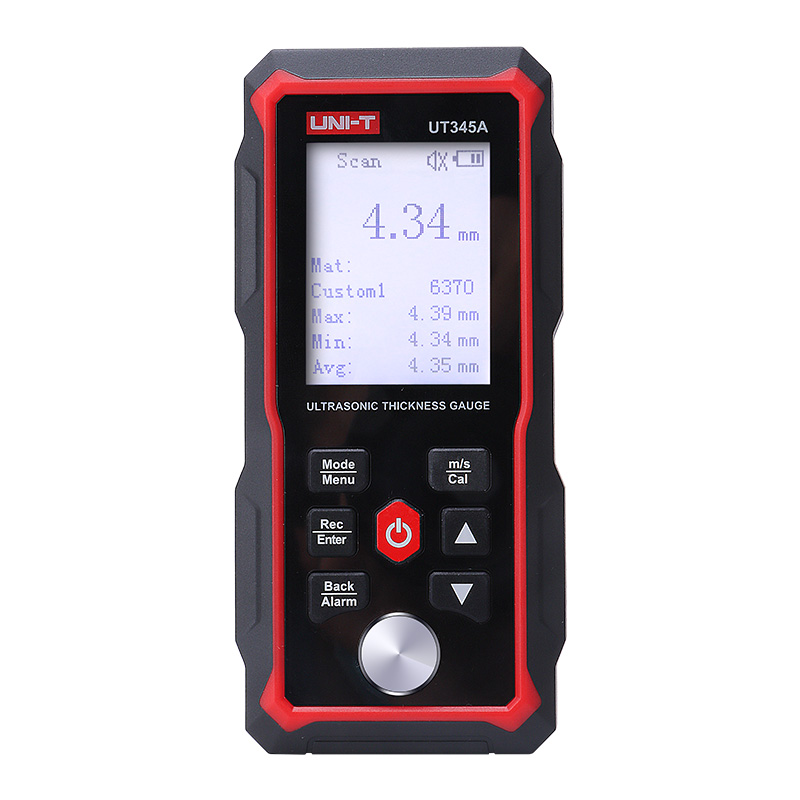

UT345A Ultrasonic Thickness Gauge UNI-TREND

https://www.megaaz.com/web/image/product.template/35175/image_1920?unique=f1c099d

UT345A Ultrasonic Thickness Gauge UNI-TREND

210.3500 AZN 210.35000000000002 AZN 210.3500 AZN

210.3500 AZN

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Product description

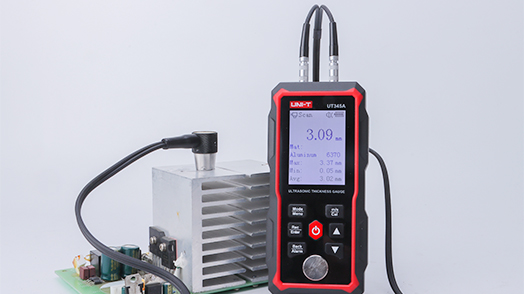

    UT345A is an intelligent ultrasonic thickness gauge that adopts the latest high-performance and low-power consumption microprocessor technology. Based on the principle of ultrasonic measurement, it can measure the thickness and sound velocity of metal and other materials. It can detect the thinning of pipes and pressure vessels after corrosion, and can make accurate measurements of plates and machined parts. The gauge can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace, and other fields.

    Features of UT345A Ultrasonic Thickness Gauge

    ● 3.7V 2000mAh lithium battery
    ● Auto calibration
    ● 300 groups of data storage
    ● High-sensitive probe
    ● Buzzer alarm
    ● Multiple materials selection
    ● Main functions: single measurement, continuous measurement, alarm, sound velocity measurement, auto-calibration

    Specifications of UT345A Ultrasonic Thickness Gauge

    Specifications
    Display2.4″ LCD
    Measurement range1.00~300.00mm
    Sound velocity range(1000~9999) m/s
    Unitmm/in
    AccuracyH<10mm, ±0.1mm; H≥10mm, ±(1%H+0.1)mm
    Lower limit of pipe measurementΦ20×3mm (steel)
    Data storage300 groups, including material, sound velocity, unit, measured value, MAX, MIN and AVG of each group
    Main functionsSingle measurement, continuous measurement, alarm, sound velocity measurement, auto calibration

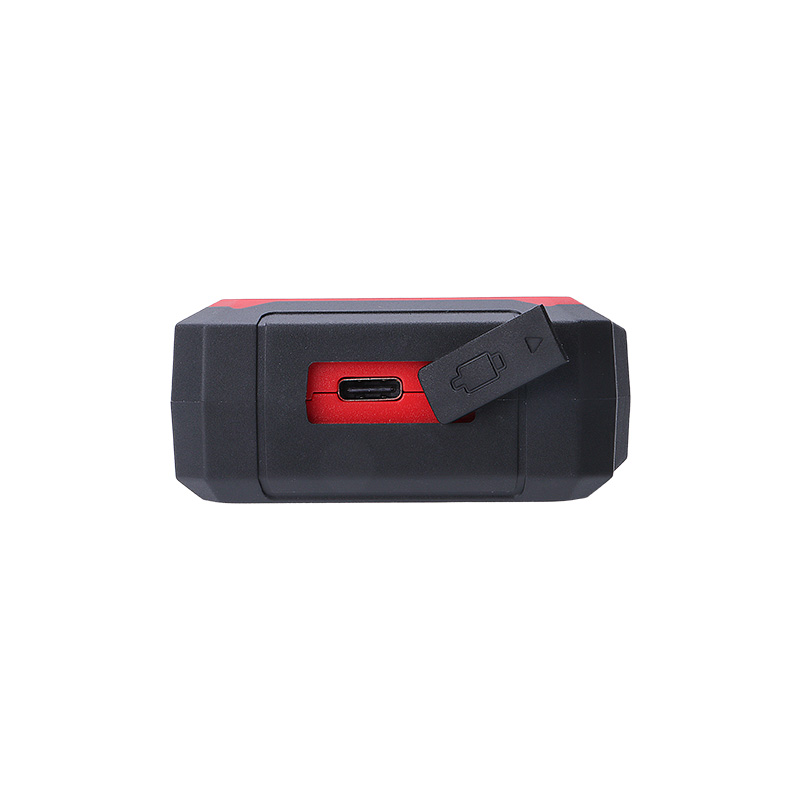

    Charging specificationDC 5V 1A, Type-C interface
    Operating time (full battery)About 16h
    Operating temperature and humidity0℃~40℃ 10%RH~80%RH
    Storage temperature and humidity-10℃~50℃ 10%RH~70%RH
    General Characteristics
    BatteryBuilt-in lithium battery (3.7V 2000mAh)
    Product colorRed and grey
    Product net weight175g
    Product size140×66×28.5mm
    Standard accessoriesType-C charging cable, Probe
    Standard individual packingGift box, English manual, Cloth case
    Standard quantity per carton5pcs
    Gross weight (one carton)3.09kg


    Download Manual
