RMS Digital Multimeter PCE-ODM 10
Description / Highlights
Digital Multimeter PCE-ODM 10

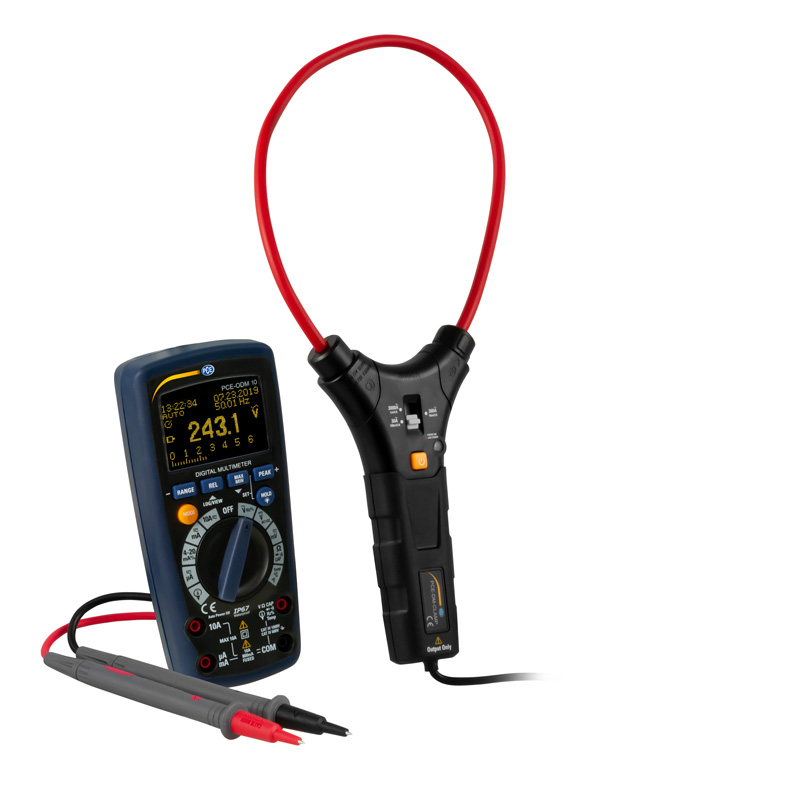

Multimeter with OLED display / Measurement up to 1000V AC & DC / Incl. Rogowski coil up to 3000 A / MIN, MAX, relative and peak measurement / IP 67 Multimeter
Multimeter with OLED display / Measurement up to 1000V AC & DC / Incl. Rogowski coil up to 3000 A / MIN, MAX, relative and peak measurement / IP 67 Multimeter
This digital multimeter has both automatic and manual range selection and a dual OLED display. The measured values are displayed on the OLED number display up to 6000 digits and in the bar graph. The readings can be read easily and changes can be displayed quickly. The digital multimeter has full input protection and complies with protection class CATIII 1000V.
Simple and direct selection of the basic functions by means of pushbuttons and autom. Range selection for: DCV, ACV, DCA, ACA, ohms, diode, continuity, capacitance, frequency and temperature measurement functions. The digital multimeter measures voltages up to 1000V AC / DC. The current can be measured directly up to 10 A AC / DC and over the Rogowski coil up to 3000 A AC. The case of the digital multimeter is IP67 protected and thus perfectly usable in a robust everyday industrial environment.
- OLED display
- Minimum value and maximum value, peak level
- Hold function
- Relative value measurement
- Diode test
- Continuity tester
- Incl. current loop
- Automatic range selection
- Automatic shutdown
- Incl. Rogowski coil for 3000 A AC
Specification
| Measuring function | |||
DC voltage DC | Measuring range | Resolution | Accuracy |
| 60 mV | 0.01 mV | ± (0.5% from + 5 Dgt) | |
| 600 mV | 0.1 mV | ± (0.5% from + 5 Dgt) | |
| 6V | 0.001 V | ± (0.5% from + 5 Dgt) | |
| 60V | 0.01V | ± (0.5% from + 5 Dgt) | |
| 600V | 0.1V | ± (0.8% from + 5 Dgt) | |
| 1000V | 1 V | ± (0.8% from + 5 Dgt) | |
| AC voltage AC | Measuring range | Resolution | Accuracy |
| (TRMS) | 60 mV | 0.01 mV | @ 50 ... 60 Hz: |
| 600 mV | 0.1 mV | ± (1% from + 5 Dgt) | |
| 6V | 0.001V | ||
| 60V | 0.01V | @ 61Hz ... 1KHz: | |
| 600V | 0.1V | ± (3% from + 5 Dgt) | |
| 1000V | 1V | ||
| AC + DC TRMS | Measuring range | Resolution | Accuracy |
| Tension | 6V | 0.001V | @ 50Hz ... 1KHz: |
| 60V | 0.01V | ± (3% from + 40 Dgt) | |
| 600V | 0.1V | ||
| 1000V | 1V | ||
| DC DC | Measuring range | Resolution | Accuracy |
| 600 μA | 0.1 μA | ± (1% from + 5 Dgt) | |
| 6000 μA | 1 μA | ± (1% from + 5 Dgt) | |
| 60-mA | 0.01-mA | ± (1% from + 5 Dgt) | |
| 600-mA | 0.1-mA | ± (1% from + 8 Dgt) | |
| 6 A | 0.001 A | ± (1.5% from + 8 Dgt) | |
| 10 A | 0.01A | ± (1.5% from + 8 Dgt) | |
| AC AC | Measuring range | Resolution | Accuracy |
| (TRMS) | 600 μA | 0.1 μA | ± (1.2% from + 5 Dgt) |
| 6000 μA | 1 μA | ± (1.2% from + 5 Dgt) | |
| 60-mA | 0.01-mA | ± (1.2% from + 5 Dgt) | |
| 600-mA | 0.1-mA | ± (1.2% from + 5 Dgt) | |
| 6 A | 0.001 A | ± (1.5% from + 8 Dgt) | |
| 10 A | 0.01A | ± (1.5% from + 8 Dgt) | |
| 4 ... 20-mA % | -25 ... 125% | 0.01% | ± 50 digits |
| AC AC | measuring range | resolution | accuracy |
| Over Rogowski coil | 30 A | 0.01A | ± (1.2% vMw + 10 Dgt) |
| 300 A | 0.1 A | ||
| 3000 A | 10 A | ||
| Resistance | Measuring range | Resolution | Accuracy |
| 600 Ω | 0.1 Ω | ± (1.2% vMw + 10 Dgt) | |
| 6 kΩ | 0.001 kΩ | ± (1.2% vMw + 5 Dgt) | |
| 60 kΩ | 0.01 kΩ | ± (1.2% vMw + 5 Dgt) | |
| 600 kΩ | 0.1 Ω | ± (1.2% vMw + 5 Dgt) | |
| 6 MΩ | 0.001 MΩ | ± (1.2% vMw + 5 Dgt) | |
| 60 MΩ | 0.01 MΩ | ± (2.5% vMw + 10 Dgt) | |
| Frequency | Measuring range | Resolution | Accuracy |
| 40 Hz ... 100 kHz | 0.01 Hz ... 0.001 kHz | ± 0.5% of Mw. | |
| Duty cycle | Measuring range | Resolution | Accuracy |
| 20 ... 80% | 0.1% | ± (1.2% from + 2 Dgt) | |
| Capacity | Measuring range | Resolution | Accuracy |
| 999.9 nF | 0.1 nF | ± (1.2% from + 8 Dgt) | |
| 9.999 nF | 0.001 μF | ± (1.5% from + 8 Dgt) | |
| 999.9 nF | 0.1 μF | ± (1.5% from + 8 Dgt) | |
| 99.99 n.f. | 0.01 mF | ± (2.5% vMw + 20 Dgt) | |
| Temperature with | Measuring range | Resolution | Accuracy |
| Thermocouple type K | -40 ... 600°C / -40 ... 1112°F | 0.1°C / 0.18°F | ± (1.5% from + 3°C / 5.4°F) |
| 600 ... 1000°C / 1112 ... 1832°F | 1°C / 1.8°F | ± (1.5% from + 3°C / 5.4°F) | |
| General technical data | |||
| Isolation | Class 2 Double insulation | ||
| Casing | IP67 plastic housing | ||
| Diode test | 1.5-mA test current | ||
| 3V DC open circuit voltage | |||
| Continuity test | Alarm tone if resistance < 50 Ω | ||
| Display | 6,000 digit OLED | ||
| Refresh rate display | 3 Hz | ||
| Automatic shutdown | After 30 minutes | ||
| Input impedance | 30 MΩ AC / DC V | ||
| AC response | TRMS | ||
| AC bandwidth | 50 ... 1000 Hz | ||
| Power supply | Digital multimeter: 9V block battery | ||
| Rogowski coil: 2 x 1.5V AAA battery | |||
| Fuses | 800-mA / 1000V fast acting (6.3 x 32 mm) | ||
| 10 A / 1000V fast acting (10 x 38 mm) | |||
| Operating conditions | 0 ... 40°C / 32 ... 104°F, < 70% rh | ||
| Storage conditions | -10 ... 60°C / 14 ... 140°F, < 80% rh | ||
| Operating altitude | < 2000 m / 6561.7 ft above sea level. | ||
| Dimensions | 170 x 79 x 50 mm / 6.7 x 3.1 x 2 in | ||
| Weight | 342 g / < 1 lb | ||
| Security | UL61010-1 v3 | ||
| CAT IV 600V | |||
| CAT III 1000V | |||
| Pollution degree | 2 | ||
