NYY 3x150+1x70mm² Cables

Description

0.6/1 kV PVC insulated, multi core cables with copper conductor

STANDARDS

International :  IEC 60502-1
National :  TS IEC 60502

DESCRIPTION

APPLICATION:

Used as lighting and power distrubution cable. Installed in areas where severe mechanical stress is avoided. Can be laid in doors, outdoors buried or in cable tranches.

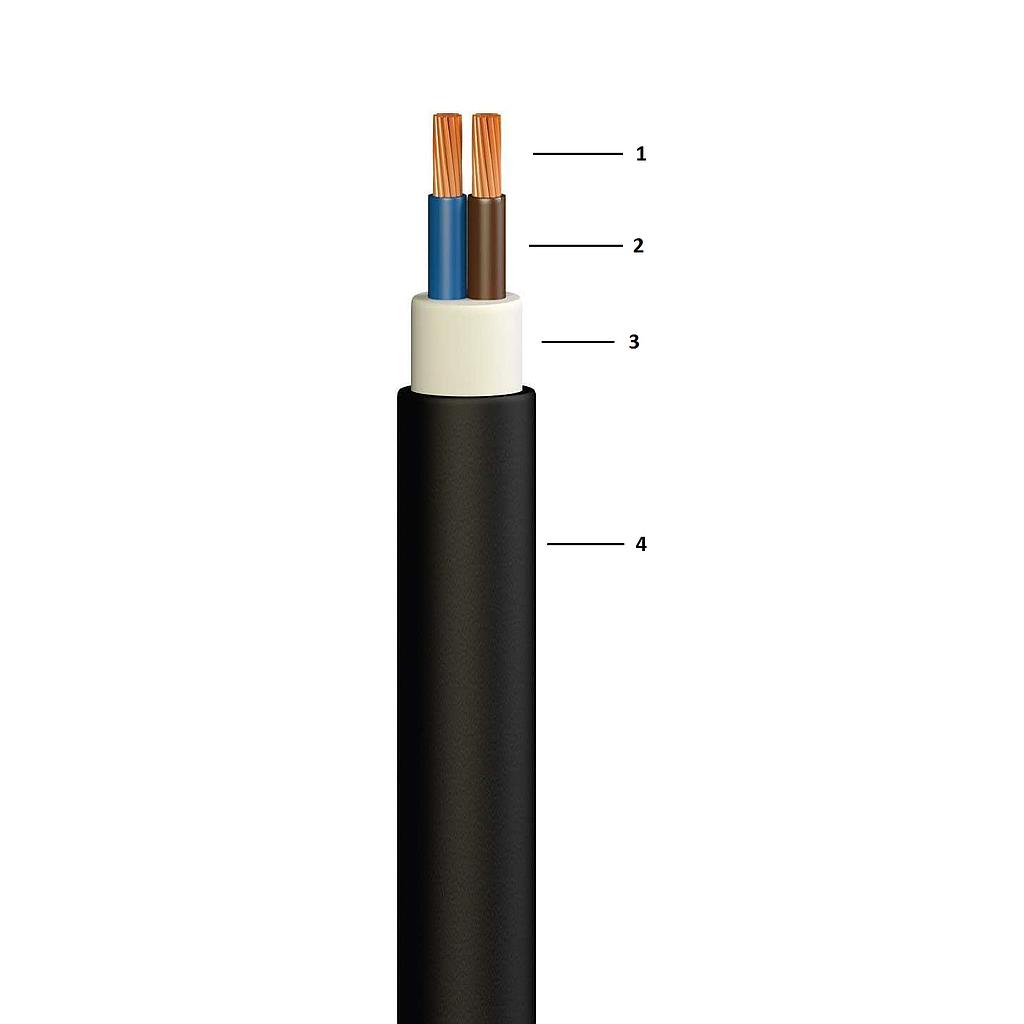

CONSTRUCTION:

1. Conductor:Copper
2. Insulation:PVC
3. Filler:PVC
4. Outer Sheath:PVC

   MARKING:

       BAKU CABLE GOKNUR



Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor material	Copper
Insulation	PVC
Conductor shape	Circular stranded (RM)
Outer sheath	PVC
Sheath colour	Black
With smaller neutral conductor	No
Core identification	Blue, brown, black, grey
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)	0.6/1 kV
USAGE CHARACTERISTICS
Operating temperature, range	-20 .. 60°C
Maximum operating temperature	70°C
Short-circuit max. conductor temperature	160°C
Flame retardant	IEC 60332-1-2
Bending factor when laying	8(xD)
