H07V-K 1x6 mm² Flexible NYAF Cables

H07V-K 1x6 mm² Flexible NYAF Cables

https://www.megaaz.com/web/image/product.template/14609/image_1920?unique=888470e

$ 1.25882 1.25882 USD $ 1.25882

2.1400 AZN

Not Available For Sale

  • Colour

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share


Description

450 / 750 V PVC Insulated non-sheathed single core cables with flexible conductors

     STANDARDS

International :  EN 50525-2-31
Declaration of Performance :  Reaction to fire: Eca

       DESCRIPTION

       APPLICATION:

For protected installations in equipment and ligth fitting.Also for in conduit or under plaster.

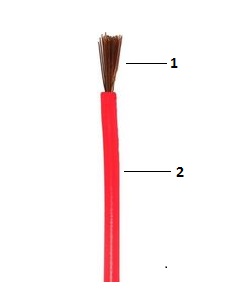

        CONSTRUCTION:

  1. Conductor: Flexible Copper
  2. Insulatıon:PVC



         MARKING:

     BAKU CABLE GOKNUR

Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
InsulationPVC
Conductor flexibilityFlexible class 5
DIMENSIONAL CHARACTERISTICS
Number of cores1
Conductor cross-section6mm²
Nominal outer diameter5.2mm
Approximate weight65kg/km
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
Permissible current rating in open air40A
Max. DC resistance of the conductor at 20°C3.3Ohm/km
USAGE CHARACTERISTICS
PackagingCoil
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature160°C
Length100m
Flame retardantIEC 60332-1-2
Max. conductor temperature in service70°C

Specifications

Colour black, blue, brown, grey, pink, red, white, yellow, green, yellow/green
