H07V-K 1x35 mm² Flexible NYAF Cables

H07V-K 1x35 mm² Flexible NYAF Cables

https://www.megaaz.com/web/image/product.template/14613/image_1920?unique=7137bea

$ 7.62353 7.62353 USD $ 7.62353

12.9600 AZN

Not Available For Sale

  • Colour

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share


Description


450 / 750 V PVC Insulated non-sheathed single core cables with flexible conductors



    STANDARDS

      International :  EN 50525-2-31
      Declaration of Performance :  Reaction to fire: Eca



       DESCRIPTION

       APPLICATION:

For protected installations in equipment and ligth fitting.Also for in conduit or under plaster.

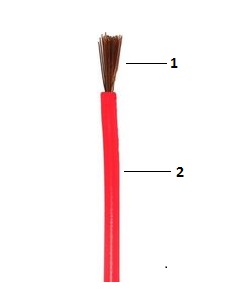

        CONSTRUCTION:

  1. Conductor: Flexible Copper
  2. Insulatıon:PVC



         MARKING:

       BAKU CABLE GOKNUR



Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
InsulationPVC
Conductor flexibilityFlexible class 5
DIMENSIONAL CHARACTERISTICS
Number of cores1
Conductor cross-section35mm²
Nominal outer diameter11.0mm
Approximate weight340kg/km
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
Permissible current rating in open air132A
Max. DC resistance of the conductor at 20°C0.554Ohm/km
USAGE CHARACTERISTICS
PackagingCoil
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature160°C
Length100m
Flame retardantIEC 60332-1-2
Max. conductor temperature in service70°C

Specifications

Colour black, blue, brown, grey, pink, red, white, yellow, green, yellow/green
