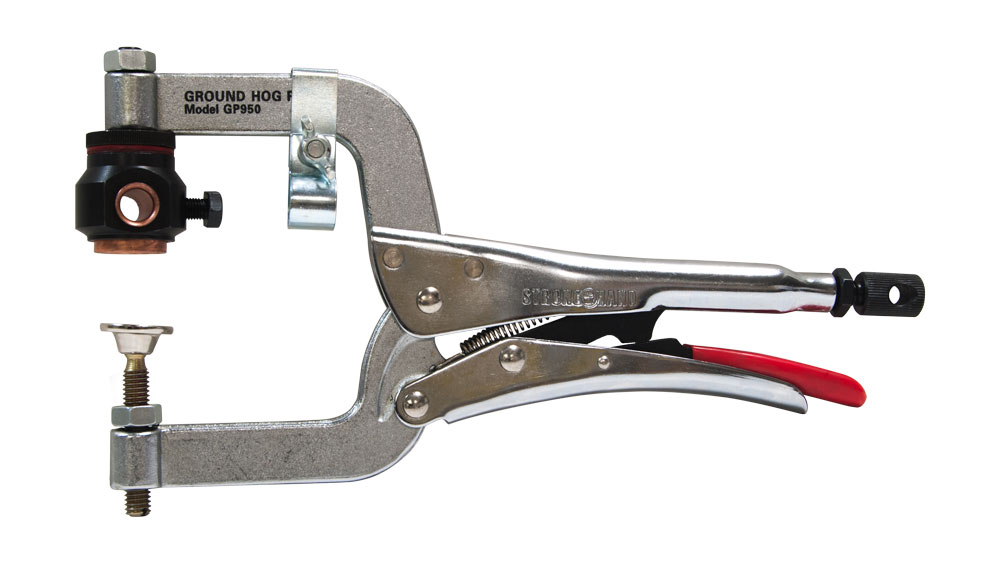

Grounding Clamps 450A/70 STRONG HAND EUROPE GP950
The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.
- Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable)
- Prevents current restriction and allows complete current transfer.
- Controls the electrical current by isolating the contact surface and the cable connection.
- Improve arc stability and cable life, and reduce power consumption.
| Part No. | Amperage / Cable Size (mm²) | Throat Depth (mm) | Max. Capacity (mm) | Tapped Hole | Clamping Pressure (kg) | OAL (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GP950 | 450A / 70 | 89 | 64 | M10 | 180 | 280 | 1.1 |
