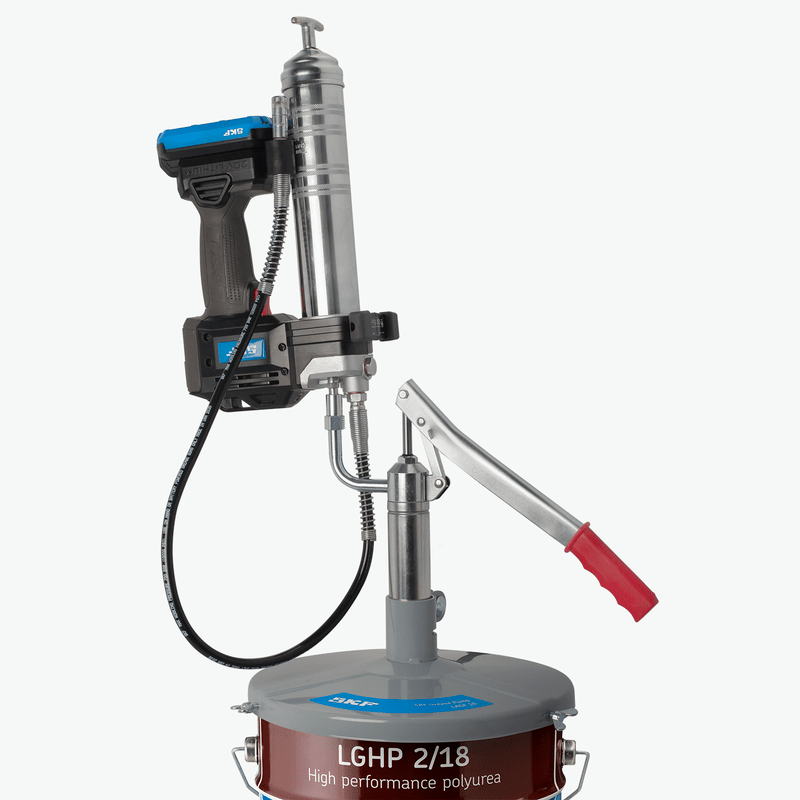

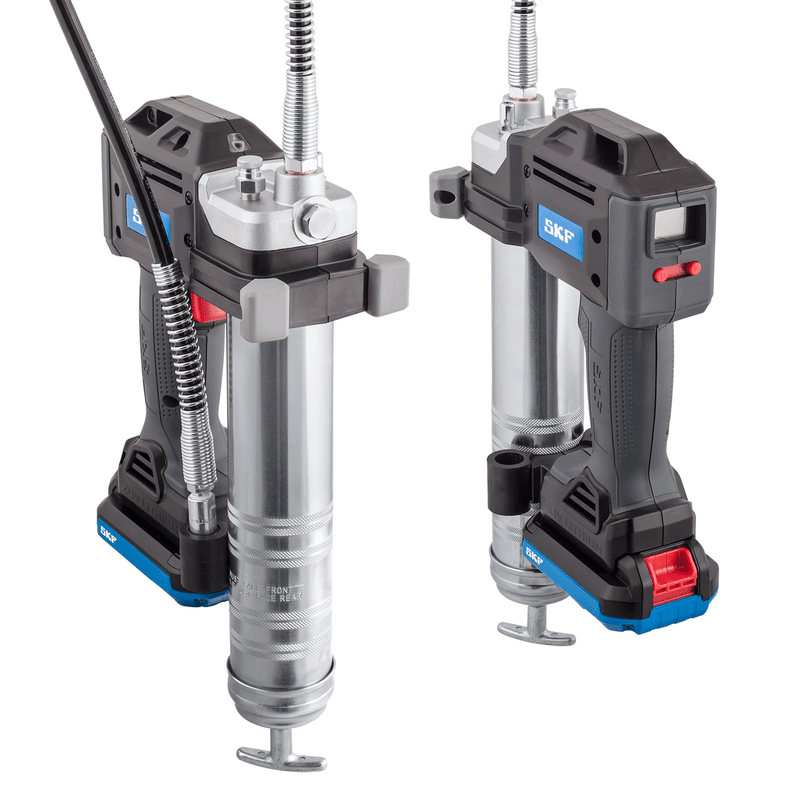

Battery driven grease gun SKF TLGB 20

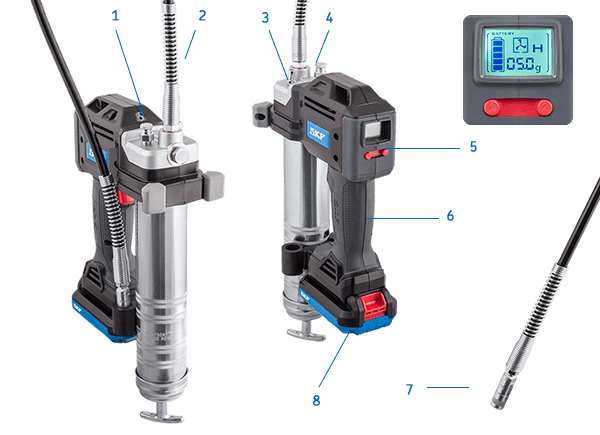

PRODUCT DETAILS
- LED light
- Spring guards
- Filler nipple
- Vent valve
- Multi-function LCD
- Ergonomic design
- 4-Jaw coupler
- 20V Lithium-ion battery
| Designation | TLGB 20 |
| Display | Grease meter |
| Battery capacity gauge | |
| Alert of blocked fittings | |
| Alert of loss of prime | |
| Grease output | |
| - Low speed setting | 100 ml/min. (3.5 oz/min.) at 70 bar pressure |
| - High speed setting | 160 ml/min. (5.5 oz/min.) at 70 bar pressure |
| Maximum operating pressure | 400 bar (6 000 psi) |
| Maximum peak pressure | 700 bar (10 000 psi) |
| Cartridges per battery charge | 15 cartridges (free flow, low speed) |
| 5 cartridges (200 bar counter pressure, low speed) | |
| Length of hose | 900 mm (36 in.) |
| Battery type | Li-Ion |
| Battery output | 20V DC maximum (without workload) |
| Battery capacity | 1 500 mAh |
| Voltage charger, V/Hz | |
| - TLGB 20 | 200–240 V/50–60 Hz |
| - TLGB 20/110V | 110–120 V/60 Hz |
| Carrying case dimensions | 590 × 110 × 370 mm (23.2 × 4.3 × 14.5 in.) |
| Weight | 3,0 kg (6.5 lb) |
| Total weight (incl.case) | 5,7 kg (12.7 lb) |
