Level Control Float Switches 1Ph 10m EMAS SKF-10

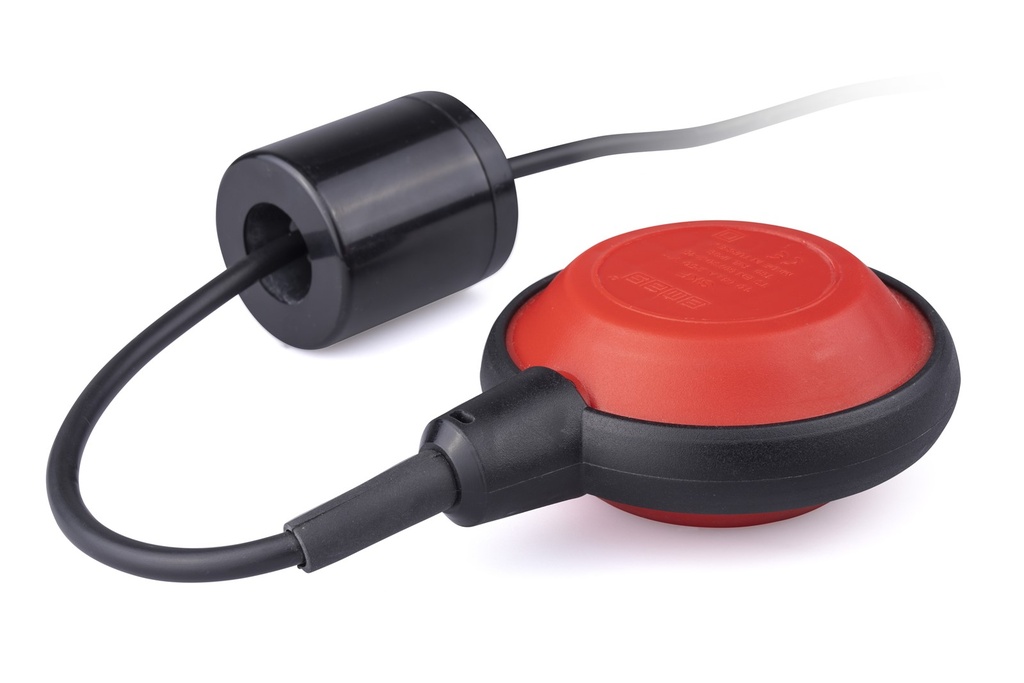

SKF Series 1 Phase 10m PVC Cobra With Standard Weight Level Control Float Switch
Product Code SKF-10
Standard TS EN 60730-2-15
Certificate
- Easy assembly
- Feature to adjust the requested operation interval with weight
- Different cable lenghth options
- Waterproof

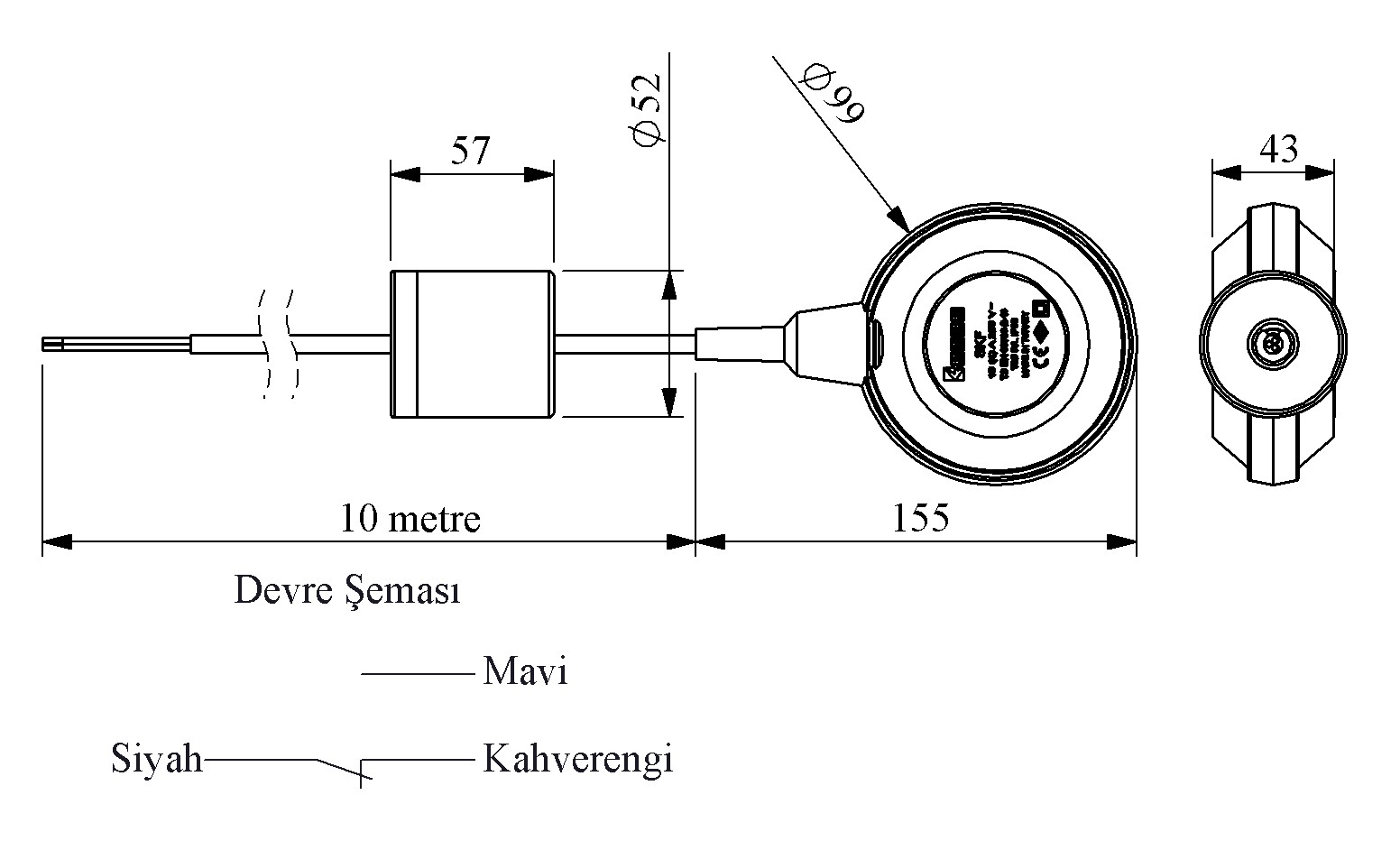

Technical Drawing
| Product | Level Control Float Switch |
| Type | Cobra |
| Feature | With Standard Weight |
| Cable | 10m |
| Phase Number | 1 Phase |
| Current (Ie) | 6 A (250V AC) |
| Usage Category | AC15 |
| Mechanical Life (Min Qty) | 30000 |
| Electrical Life (Min Qty) | 10000 |
| Operating Frequency (On-Off/Hour) | Mek.120 Elk.120 |
| Insulation Voltage (Ui) | 660V |
| Impulse Withstand Voltage (Uimp) | 2.75 kV |
| Dielectric Strength (Body-Contact) | 2750V AC |
| Dielectric Strength (Contact-Contact) | 1890V AC |
| Isolation Resistance | 10 MΩ MİN. (500 V DC) |
| Operating Temperature | -15 / + 80 °C |
| Protection Degree | IP68 |
| Contact Material | AgNi |
| Cable Section | 3*1 mm Kablo |
| Serial | SKF Series |
| Cable Type | PVC |
Datasheet
