INSIDE OUTSIDE ANGLE MAGNETS STRONG HAND EUROPE MLA600

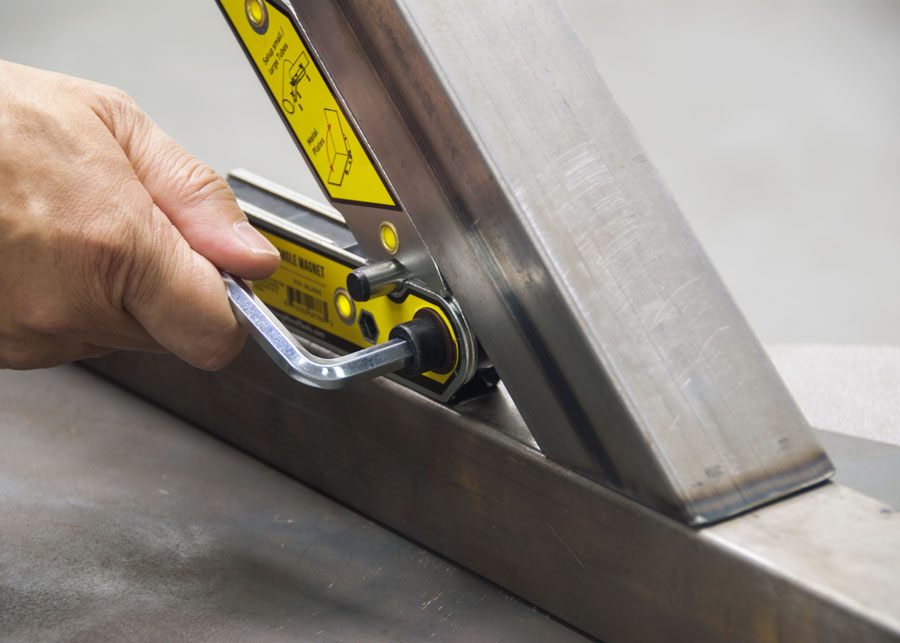

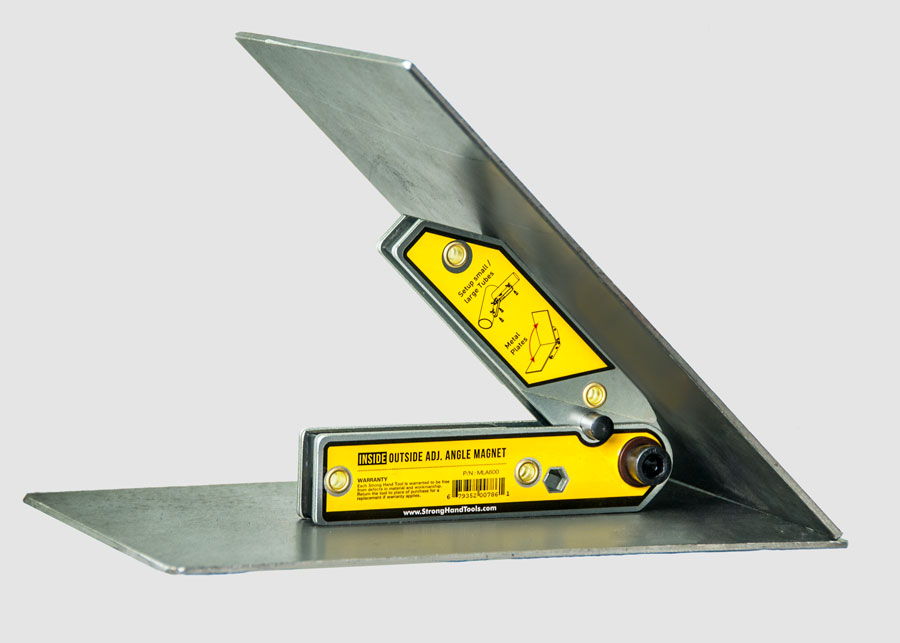

Hold stock from the outside, leaving clearance for inside welds, or hold stock from the inside for outside welds.
- Hold and position sheet metal, round pipes, square, angled or flat stock.

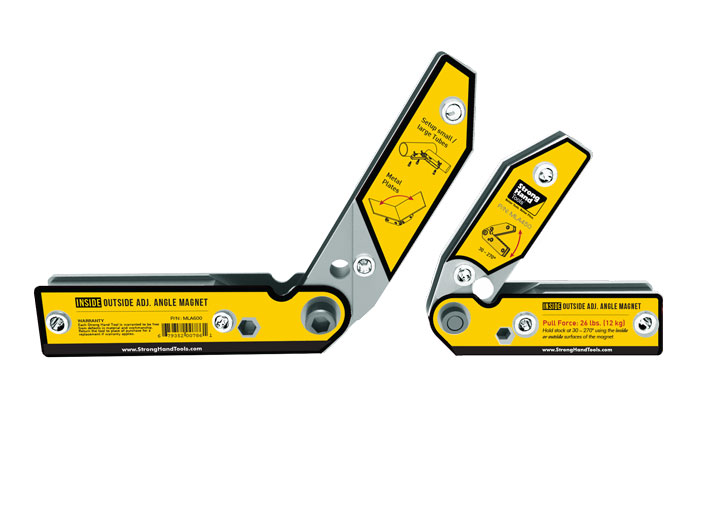

- The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to workpieces.
- Use mounting holes to link two magnets together for use as fixturing elements.
- Use hex hole on magnet for breakaway leverage.
Part No. | Descrition | Angles | Height | Width | Thickness | Mag. Pull Force | Weight |
---|---|---|---|---|---|---|---|
MLA600 | Adjustable | 30-270° | 6″ (156 mm) | 6″ (156 mm) | 0.79″ (20 mm) | 33 lbs. (15 kg) | 2 lbs. (0.9 kg) |
