INSIDE OUTSIDE ANGLE MAGNETS STRONG HAND EUROPE MLA450

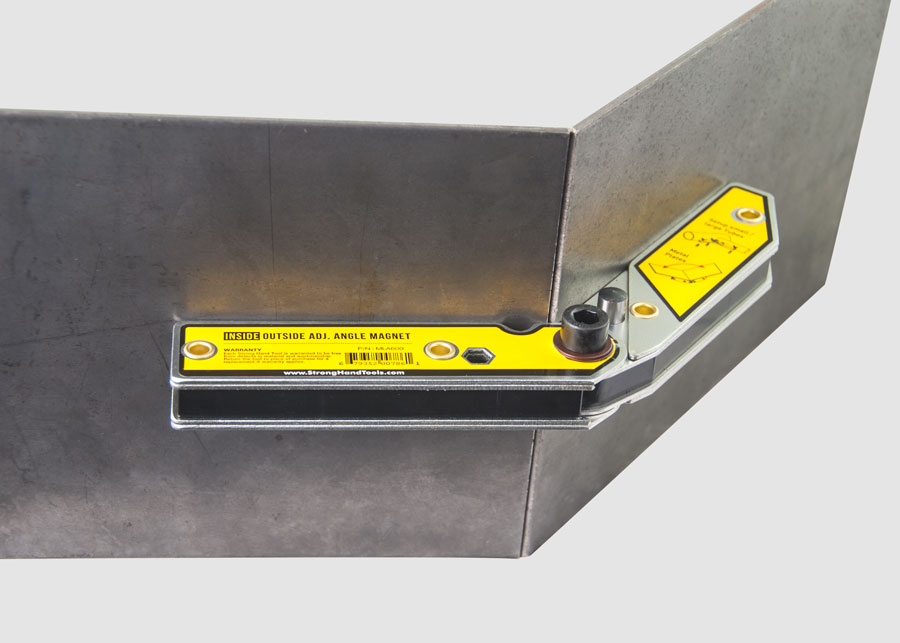

Hold stock from the outside, leaving clearance for inside welds, or hold stock from the inside for outside welds.
- Hold and position sheet metal, round pipes, square, angled or flat stock.
- The Inside / Outside Angle Magnets are constructed from two independent rectangular magnets for consistent, undiminished magnetic force when both sides are attached to workpieces.
- Use mounting holes to link two magnets together for use as fixturing elements.
- Use hex hole on magnet for breakaway leverage.
Part No. | Descrition | Angles | Height | Width | Thickness | Mag. Pull Force | Weight |
---|---|---|---|---|---|---|---|
MLA450 | Adjustable | 30-270° | 4.7″ (120 mm) | 4.7″ (120 mm) | 0.72″ (18 mm) | 26 lbs. (12 kg) | 1.2 lbs. (0.5 kg) |
