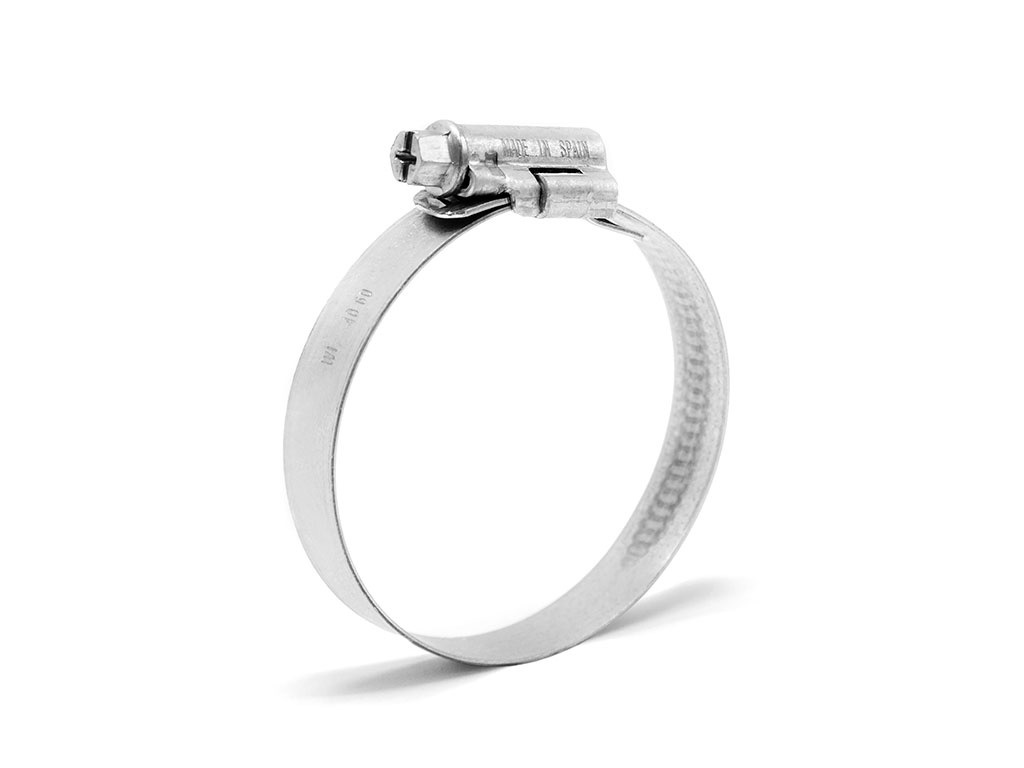

ASFA-S WORM-DRIVE HOSE CLIP 190-210/12 W1 MIKALOR 03009021

This clamp represents the latest stage in the evolution of the ASFA 12mm range. One of the main developments in this version is the lateral displacement of the band thread, which reduces the tendency of the band end to exit the housing off-centre when tightened.

Thanks to the combination of the housing, the locking system and the location of the screw within the housing, this clamp offers superior performance at the same torque ratings.

Specially recommended for industrial applications.

DIN 3017. The ASFA S hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

Material:
Band and housing: Galvanized Steel (DIN 1.0935)
Screw: Steel Qst 36-3 (DIN 1.0214)

Finish:
Band and housing: Galvanized Steel
Screw: Grey-White Cr3 Zinc-Plated

Corrosion resistance:
144 Hours
Salt Spray (ASTM B-117)

Maximum tightening speed (RPM):
540 ±5

Technical information
