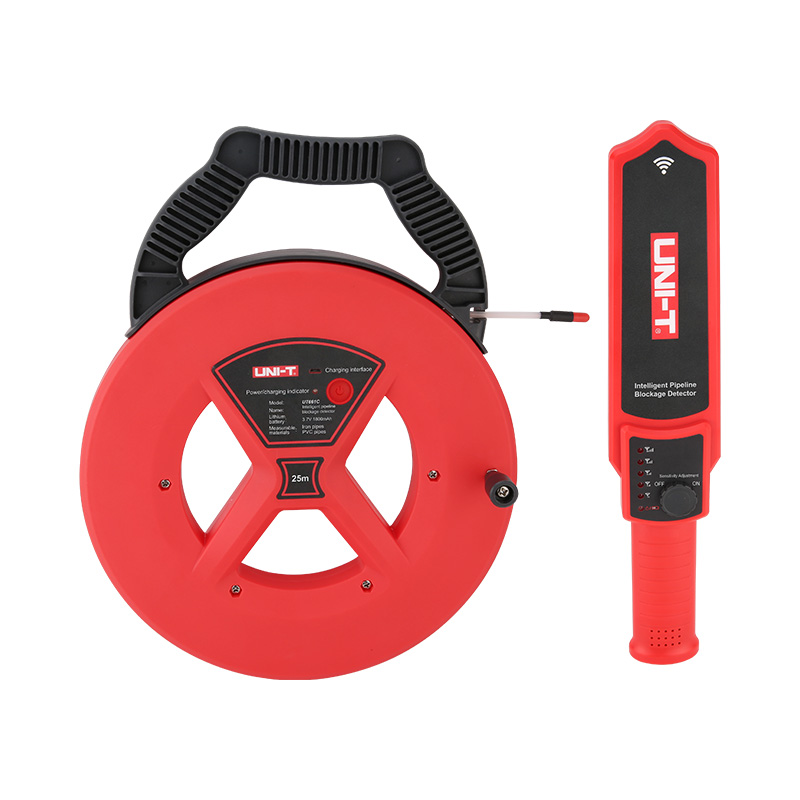

UT661D Детекторы засорения трубопроводов серии UNI-TREND

https://www.megaaz.com/web/image/product.template/35178/image_1920?unique=888470e

78,03526 78.03526 USD 78,03526

132,6600 AZN

Not Available For Sale

Такая комбинация не существует

Условия и положения
30-дневная гарантия возврата денег
Доставка: 2-3 рабочих дня


Product description

The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 35m for UT661D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.


Features of UT661 Series Pipeline Blockage Detectors

Certificates: CE, RoHS

● The location of the blockage in the pipe can be detected
● Measurable pipe material: plastic pipes, metal pipes

● Maximum detection distance(depth): 50cm
● Buzzing prompt and Flash prompt


Specifications of UT661 Series Pipeline Blockage Detectors

SpecificationsUT661D
TransmitterYes
Signal wire35m
ReceiverYes
Maximum detection distance(depth)50cm
Transmitter currentShutdown current: <2uA, working current: 230~310mA
Receiver currentShutdown current: <2uA, standby current: <40mA
Maximum working current: 150~450mA (Distance 1cm)
Charging current450~550mA
Test the output sound at a distance of 1cm>93dB
Test the output sound at a distance of 0.5m>75dB
Battery duration10 hours
Operting temperature and humidity-20°C~60°C, 10~80%RH
Measurable pipe materialPlastic pipes, metal pipes
Buzzing promptYes
Flash promptYes
Low battery indicationYes
Waterproof gradeProbe waterproof IP67
General Characteristics
Transmitter batteryBuilt-in lithium battery (3.7V 1800mAh)
Receiver batteryBuilt-in lithium battery (3.7V 1800mAh)
ColorRed and grey
WeightTransmitter: 1.24KG
Receiver: 0.26KG

External dimensionTansmitter: 38x30x42mm
Receiver: 40x38x80mm
Standard accessoriesCharging cable, Probe kit
Standard individual packingGift box, English manual, Warranty card
Standard quantity per carton5pcs
Standard packing size405x90x350mm



Download Manual
