Тестер автомобильных аккумуляторов PCE-CBA 10
Description / Highlights

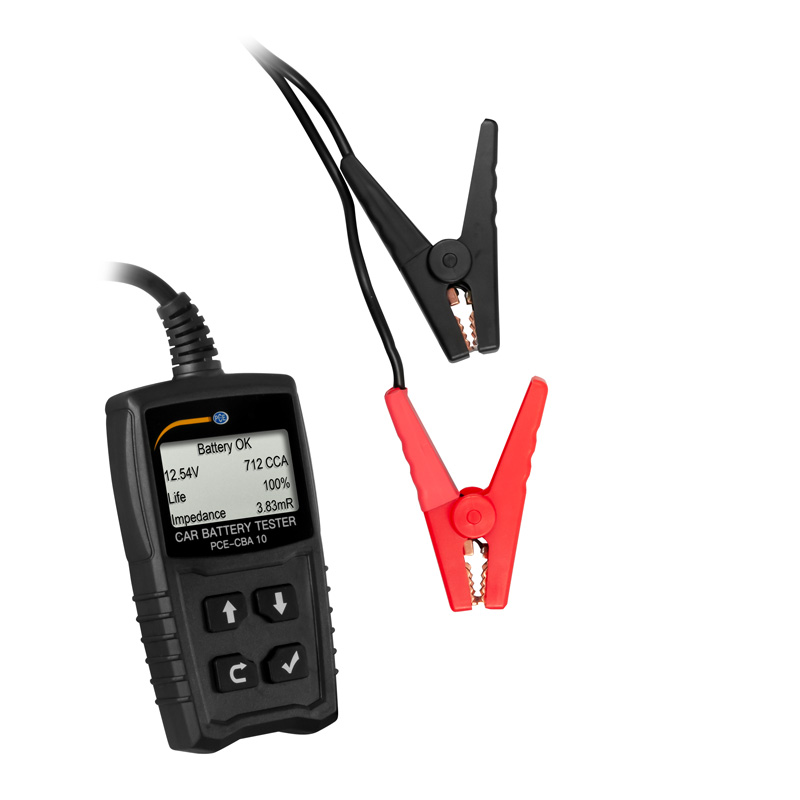

Electrical Tester PCE-CBA 10
Car battery tester for testing 12V starter batteries / LC display /
Starter and charging circuit measurement / Robust design / Easy to use
The electrical tester PCE-CBA 10 is a car battery tester and allows fast and easy testing of 12V voltage starting batteries. The electrical tester has various test modes to determine the condition of the car battery. The LC display of the electrical tester guides the user intuitively through the settings and various modes of operation.
The electrical tester is suitable for car batteries of the type DIN, KIS, IEC, EN, GB, SAE and MCA. To test the battery, the electrical tester can measure, inter alia, the starting current to determine the capacity of the car battery in the range between 30 and 100 Ah.
- LC display
- Multilingual menu
- For 12V starter batteries
- Different test modes
- Fast measurement
- DIN, JIS, EN, IEC, SAE, GB & MCA standards
Specification
| Measurement object | 12V starter batteries |
| Battery standards | DIN, JIS, IEC, EN, GB, SAE, MCA |
| Test time | 3 ... 10 s |
| Cold start current CCA | 100 ... 1700 A |
| Battery capacity | 30 Ah ... 100 Ah |
| Display | 2.4" LC display |
| Power supply | 12V DC over test voltage |
| Connection | Kelvin terminals |
| Dimensions | 124 x 73 x 22 mm / 4.8 x 2.8 x 0.8 in |
| Cable length | ca. 100 cm / 39 in |
| Weight | ca. 250 g / 8.8 oz |
