In dry rooms, switching and distribution panels,for laying in conduit on and under plaster and / or on insulating supports above plaster.
BAKU CABLE GOKNUR

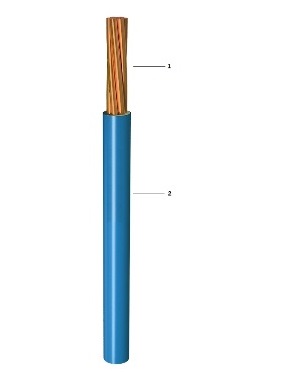

| CONSTRUCTION CHARACTERISTICS | |
|---|---|
| Conductor material | Copper |
| Insulation | PVC |
| Conductor shape | Circular stranded |
| DIMENSIONAL CHARACTERISTICS | |
| Number of cores | 1 |
| Conductor cross-section | 240mm² |
| Nominal outer diameter | 23.0mm |
| Approximate weight | 2500kg/km |
| ELECTRICAL CHARACTERISTICS | |
| Rated Voltage Uo/U (Um) | 450 / 750 V |
| Permissible current rating in open air | 485A |
| Max. DC resistance of the conductor at 20°C | 0.075Ohm/km |
| USAGE CHARACTERISTICS | |
| Packaging | Coil |
| Operating temperature, range | -20 .. 60°C |
| Short-circuit max. conductor temperature | 160°C |
| Length | 100m |
| Flame retardant | EN 60332-1-2 |
| Max. conductor temperature in service | 70°C |
| Colour | black, blue, brown, grey, pink, red, white, yellow, green, yellow/green |
