For protected installations in equipment and ligth fitting.Also for in conduit or under plaster.
?unique=888470e)
H07V-K 1x16 мм² гибкий NYAF кабель
Description
450 / 750 V PVC Insulated non-sheathed single core cables with flexible conductors
STANDARDS
International : EN 50525-2-31
Declaration of Performance : Reaction to fire: Eca
DESCRIPTION
APPLICATION:

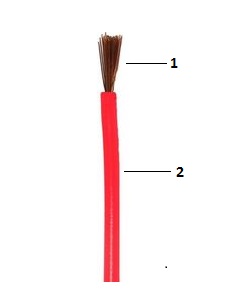

CONSTRUCTION:
- Conductor: Flexible Copper
- Insulatıon:PVC
- Conductor: Flexible Copper
- Insulatıon:PVC
MARKING:
BAKU CABLE GOKNUR
BAKU CABLE GOKNUR
Characteristics
CONSTRUCTION CHARACTERISTICS Conductor material Copper Insulation PVC Colour Blue Conductor flexibility Flexible class 5 DIMENSIONAL CHARACTERISTICS Number of cores 1 Conductor cross-section 16mm² Nominal outer diameter 7.5mm Approximate weight 160kg/km ELECTRICAL CHARACTERISTICS Rated Voltage Uo/U (Um) 450 / 750 V Permissible current rating in open air 76A Max. DC resistance of the conductor at 20°C 1.21Ohm/km USAGE CHARACTERISTICS Packaging Coil Operating temperature, range -20 .. 60°C Short-circuit max. conductor temperature 160°C Length 100m Flame retardant IEC 60332-1-2 Max. conductor temperature in service 70°C
| ||||||||||||||||||||||||||||||||||||||||||
Спецификации
| Colour | black, blue, brown, grey, pink, red, white, yellow, green, yellow/green |
