H05VV5-F 19x1.5мм² 300/500 V кабель
H05VV5-F 19x1.5mm² 300/500 V Control Cable Baku Cable Goknur
Этот товар не имеет действительной комбинации.
Application:
In dry and wet locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control,
measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machinery.
In dry and wet locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control,
measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machinery.

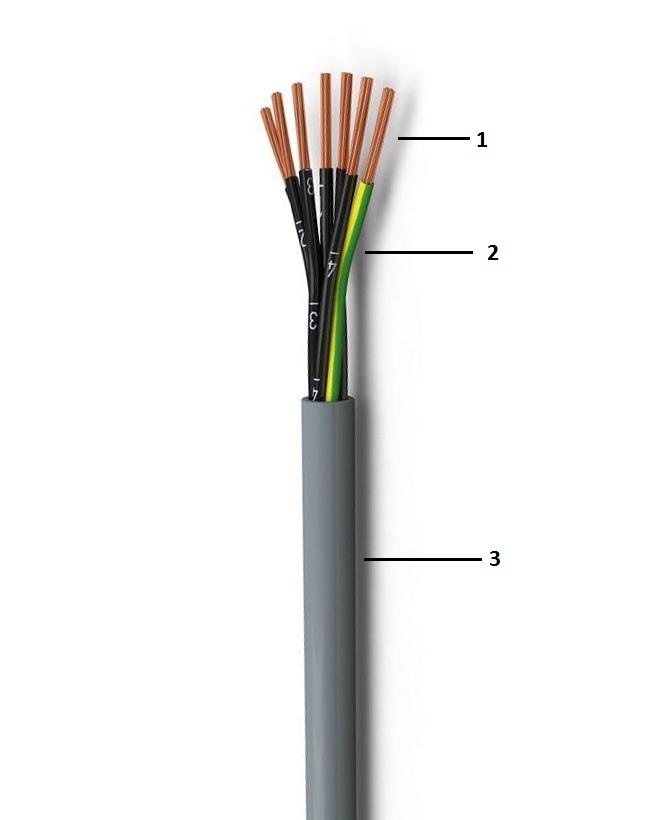

Construction:
1 ..... fine-stranded bare copper
2 ..... core insulation of polyvinylchloride (PVC-mixture YI2)
3 ..... outer sheath of polyvinylchloride (PVC-mixture YM2), grey
Standards:
DIN VDE 0281-part 13
DIN EN 60228 class 5 (construction)
core identification:
1 core green/yellow, other cores black with figures
| CONSTRUCTION CHARACTERISTICS | |
|---|---|
| Conductor material | Bare copper |
| Sheath colour | Grey |
| Conductor flexibility | Flexible class 5 |
| Insulation | PVC compound type YI 4 |
| Outer sheath | PVC compound type YM 5 |
| DIMENSIONAL CHARACTERISTICS | |
| Conductor cross-section | 1.5mm² |
| Number of cores | 19 |
| ELECTRICAL CHARACTERISTICS | |
| Test voltage | 2kV |
| Rated Voltage Uo/U (Um) | 300 / 500 V |
| MECHANICAL CHARACTERISTICS | |
| Cable flexibility | Flexible |
| USAGE CHARACTERISTICS | |
| Packaging | 500 m one way drum |
| Ambient static operating temperature, range | -40 .. 80°C |
| Ambient dynamic operating temperature, range | -15 .. 80°C |
| Bending factor when installed | 6(xD) |
| Dynamic bending factor | 10(xD) |
| Length | 500m |
| Oil resistance | Yes |
| RoHS compliant | Yes |
| Fire retardant | IEC 60332 Part 1 |
| Silicone free | Yes |
| Chemical resistance | Oil resistant |
