N2XH FE180 1x50mm² Tək Damarlı Kabel

N2XH FE180 1x50mm² Tək Damarlı Kabel

https://www.megaaz.com/web/image/product.template/15026/image_1920?unique=888470e

Bu məhsulun işlək kombinasyonu yoxdur.

Bizimlə Əlaqə Saxlayın

Şərtlər və Qaydalar
30 günlük pulun geri qaytarılma zəmanəti
Çatdırılma: 2-3 iş günü

Paylaşın



Description

International Designation :  N2XH FE 180
0.6/1 kV single core, halogen free and fire resistant cables

STANDARDS

International :  IEC 60502-1

DESCRIPTION

APPLICATION:

Refineries,mines,hotels,schools, tunnels, high constructions hospitals,power plants,data processing centers, business centers where there is a risk of fire.

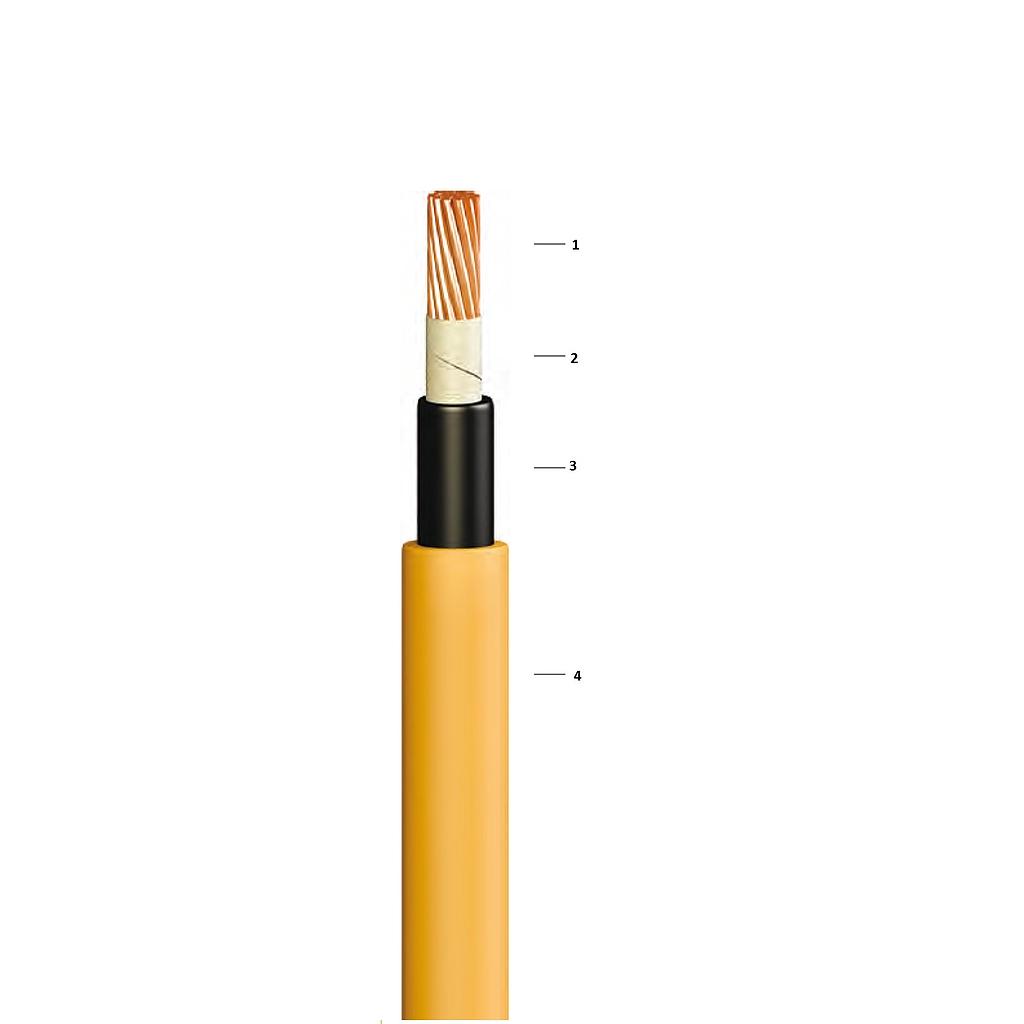

CONSTRUCTION:

  1. Conductor:Copper
  2. Fire proof:Mica tape
  3. Insulation:XLPE
  4. Outher sheath:LSZH (Low smoke zero halogen)



   MARKING:

       BAKU CABLE GOKNUR



Characteristics

CONSTRUCTION CHARACTERISTICS
Halogen freeIEC 60754-1
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)0.6/1 kV
USAGE CHARACTERISTICS
Fire resistantIEC 60331-21
Bending factor when laying12(xD)
Flame retardantIEC 60332-3 Cat. C
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature250°C
Smoke densityIEC 61034
Gases corrosivityLow IEC 60754-2
Max. conductor temperature in service90°C
SPECIFIC CHARACTERISTICS
  • Conductor shape
