H07V-K 1x2.5 mm² Elastik NYAF Kabel

H07V-K 1x2.5 mm² Elastik NYAF Kabel

https://www.megaaz.com/web/image/product.template/14607/image_1920?unique=888470e

$ 0,42353 0.42353 USD $ 0,42353

0,7200 AZN

Not Available For Sale

  • Colour

Bu kombinasyon mövcud deyil.

Bizimlə Əlaqə Saxlayın

Şərtlər və Qaydalar
30 günlük pulun geri qaytarılma zəmanəti
Çatdırılma: 2-3 iş günü

Paylaşın


Description

450 / 750 V PVC Insulated non-sheathed single core cables with flexible conductors

     STANDARDS

International :  EN 50525-2-31
Declaration of Performance :  Reaction to fire: Eca

       DESCRIPTION

       APPLICATION:

For protected installations in equipment and ligth fitting.Also for in conduit or under plaster.

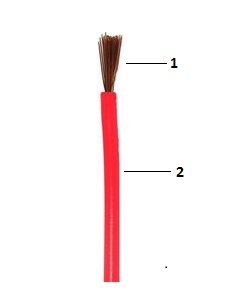

        CONSTRUCTION:

  1. Conductor: Flexible Copper
  2. Insulatıon:PVC



         MARKING:

       BAKU CABLE GOKNUR



CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
InsulationPVC
Conductor flexibilityFlexible class 5
DIMENSIONAL CHARACTERISTICS
Number of cores1
Conductor cross-section2.5mm²
Nominal outer diameter3.7mm
Approximate weight30kg/km
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
Permissible current rating in open air23A
Max. DC resistance of the conductor at 20°C7.98Ohm/km
USAGE CHARACTERISTICS
PackagingCoil
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature160°C
Length100m
Flame retardantIEC 60332-1-2
Max. conductor temperature in service70°C

Specifications

Colour black, blue, brown, grey, pink, red, white, yellow, green, yellow/green
