H07V-K 1x120 mm² Elastik NYAF Kabel

H07V-K 1x120 mm² Elastik NYAF Kabel

https://www.megaaz.com/web/image/product.template/14617/image_1920?unique=888470e

$ 23,45411 23.45411 USD $ 23,45411

39,8720 AZN

Not Available For Sale

  • Colour

Bu kombinasyon mövcud deyil.

Bizimlə Əlaqə Saxlayın

Şərtlər və Qaydalar
30 günlük pulun geri qaytarılma zəmanəti
Çatdırılma: 2-3 iş günü

Paylaşın


Description


450 / 750 V PVC Insulated non-sheathed single core cables with flexible conductors



    STANDARDS

      International :  EN 50525-2-31
      Declaration of Performance :  Reaction to fire: Eca



       DESCRIPTION

       APPLICATION:

For protected installations in equipment and ligth fitting.Also for in conduit or under plaster.

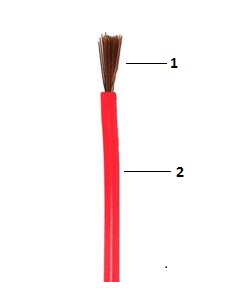

        CONSTRUCTION:

  1. Conductor: Flexible Copper
  2. Insulatıon:PVC



         MARKING:

       BAKU CABLE GOKNUR


   Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
InsulationPVC
Conductor flexibilityFlexible class 5
DIMENSIONAL CHARACTERISTICS
Number of cores1
Conductor cross-section120mm²
Nominal outer diameter19.0mm
Approximate weight1200kg/km
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
Permissible current rating in open air298A
Max. DC resistance of the conductor at 20°C0.161Ohm/km
USAGE CHARACTERISTICS
PackagingCoil
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature160°C
Length100m
Flame retardantIEC 60332-1-2
Max. conductor temperature in service70°C



Specifications

Colour black, blue, brown, grey, pink, red, white, yellow, green, yellow/green
