Boru Ölçüsü 20mm-6000mm Ultrasonik Axın Ölçən UF2000H
Product description

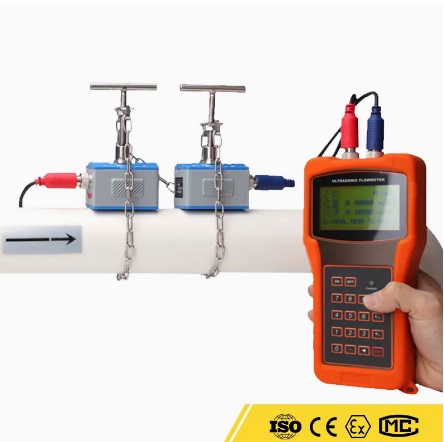

UF2000H hand held ultrasonic flow meter is a battery power ultrasonic flow meter ,the capability of a full size flow meter. it is carefully designed for portability and easy for use.
| Item | ultrasonic flow meter TUF2000H |
| Pipe Size | 20mm-6000mm |
| Totalizer | 7-digit totals for net,positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Display | 4*16 English letters |
| Transducers | Clamp on sensor for TDS-100H ultrasonic flow meter |
Transducer Cord Length | Standard 2-10 meters,optional 2*500 meters |
| Power Supply | 3AAA Ni-H built-in batteries. 90~230VAC for the charger+ |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 100x66x20mm |
| Handest Weight | 514g(1.2lbs) with batteries |
| Linearity | 0.50% |
| Repeatability | 0.20% |
| Accuracy | ±1% of reading at rates >0.2mps |
| Velocity | ±32 m/s |
•Wide flow measurement range, from 0 m/s to 32 m/s
•Bi-directional measurement, totalize for net, positive and negative flow. with large screen
•High accuracy, better than 1 % of velocity
•Wide pipe size range, from DN 15 to DN 6000 mm
•Suitable for all commonly used pipe materials
•Rechargeable battery with 12 hours of operation
•Built – in data logger
Download Manual
