BİR QULAQLI ZB İÇİ ÜZÜKLÜ SIXAC SS 11,5-13,3 MIKALOR 03011053

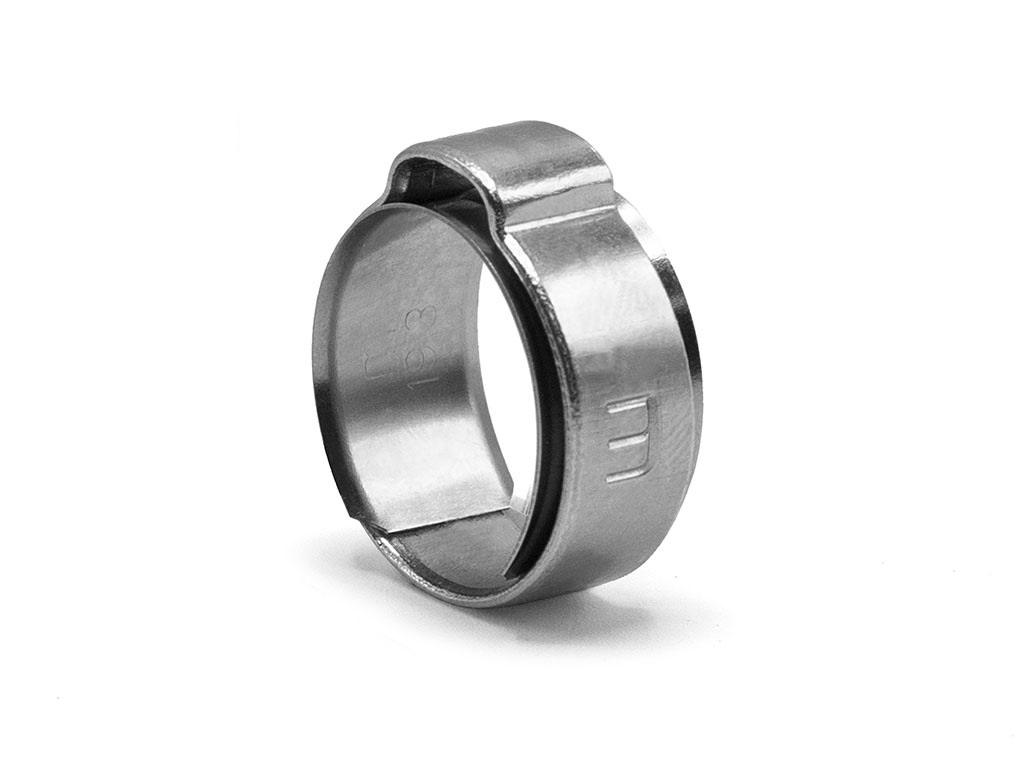

One Ear Clip with Inner-Ring
The fact that these clamps are used on very small-bore hoses means that the material of the tube or hose can sometimes be very flexible, making it more difficult to ensure a leaktight assembly due to the possible deformation of the hose. In these cases, the inner-ring is key in helping to guarantee leaktightness as well as protecting the hose from being pinched during assembly.
Material:
Clip: ST4 (DIN 1624)
Inner-Ring: Stainless Steel (AISI 301)
Finish:
Clip: Silver-White Cr3 Zinc-Plated
Inner-Ring: Stainless Steel
Corrosion resistance:
72 hours
Salt Spray (ASTM B-117)
Technical information
