Аппарат для сварки полипропиленовых труб CANDAN CM 02-SET
Product Code:
CM-02-SET
Installed Capacity
850 Watt (Single Resistance)
Supply Voltage
220-240V ~
Frequency
50-60 Hz.
Operating Temperature
270 ° C
Cable
3X1,5 mm², 220cm cable fireproof up to 200 ° C has been used.
Thermostat Regulation Indicator
50-320 ° C
Resistor Material
Stainless Steal
Main Supply Cross Section
3 x 2,5 mm² Feeding Cable
Protection Class
IP 44
Main Fuse Value
16 A (on electrical installation )
Other Remarks
a- Two heads can be simultaneously installed on a unit
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.

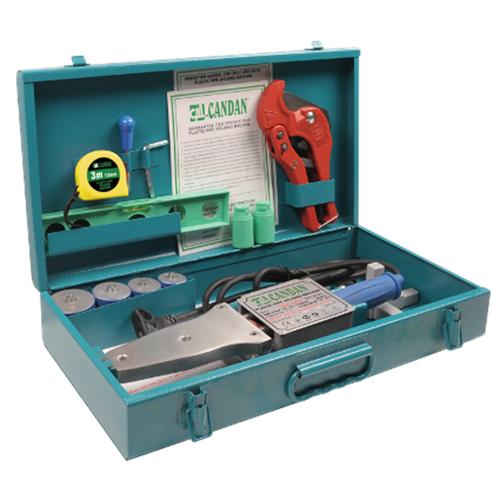

d- The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d- The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
Weight
5,47 Kg (Net) -5,52 Kg (Gross)
