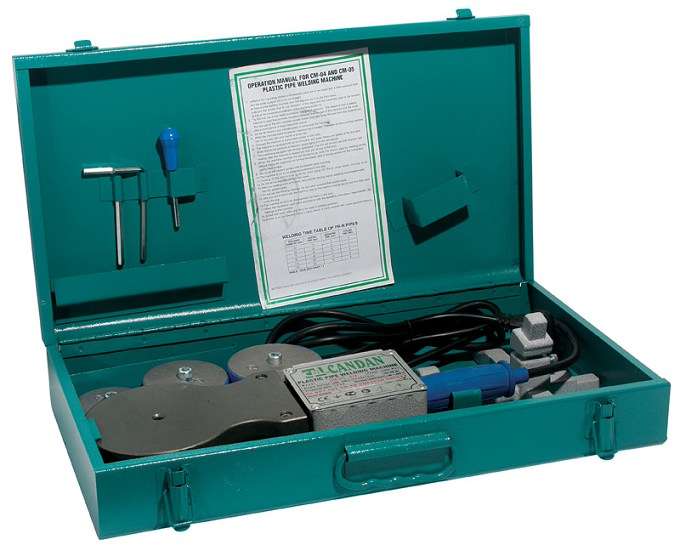

Plastik Boru qaynaqlama Ütüsü dəsti CANDAN CM 04-SET
Product Code:CM-04-SETInstalled Capacity1000+1000=2000 Watt (Double resistance)Supply Voltage220-240V ~Frequency50-60 Hz.Operating Temperature270 ° CCable3X1,5 mm², 220cm cable fireproof up to 200 ° C has been used.Thermostat Regulation Indicator50-320 ° CResistor MaterialStainless SteelMain Supply Cross Section3 x 2.5 mm² Supply CableProtection ClassIP 44Main Fuse Value16 A (on the power connection line)Other Remarksa-One pcs large-size head can be installed on the iron
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d-50mm,63mm,75mm welding sockets in the setWeight7,5 Kg (Net) -7,7 Kg (Gross)
Product Code:
CM-04-SET
Installed Capacity
1000+1000=2000 Watt (Double resistance)
Supply Voltage
220-240V ~
Frequency
50-60 Hz.
Operating Temperature
270 ° C
Cable
3X1,5 mm², 220cm cable fireproof up to 200 ° C has been used.
Thermostat Regulation Indicator
50-320 ° C
Resistor Material
Stainless Steel
Main Supply Cross Section
3 x 2.5 mm² Supply Cable
Protection Class
IP 44
Main Fuse Value
16 A (on the power connection line)
Other Remarks
a-One pcs large-size head can be installed on the iron
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d-50mm,63mm,75mm welding sockets in the set
b- The ON-OFF switch has been equipped with a light indicator for easier operation.
c- A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere.
d-50mm,63mm,75mm welding sockets in the set
Weight
7,5 Kg (Net) -7,7 Kg (Gross)
