H07V-R 1x400 mm² Kabel

H07V-R 1x400 mm² Kabel

https://www.megaaz.com/web/image/product.template/14690/image_1920?unique=888470e

$ 59,87762 59.87762 USD $ 59,87762

101,7920 AZN

Not Available For Sale

  • Colour

Bu kombinasyon mövcud deyil.

Bizimlə Əlaqə Saxlayın

Şərtlər və Qaydalar
30 günlük pulun geri qaytarılma zəmanəti
Çatdırılma: 2-3 iş günü

Paylaşın


Description

450/750 V PVC insulated non sheated single core cables

STANDARDS

International :  EN 50525-2-31
National :  BS 6004
Declaration of Performance :  Reaction to fire: Eca


DESCRIPTION

APPLICATION:

In dry rooms, switching and distribution panels,for laying in conduit on and under plaster and / or on insulating supports above plaster.

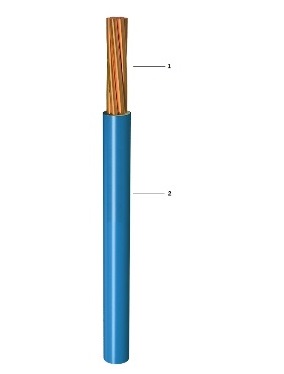

CONSTRUCTION:

  1. Conductor:Copper
  2. Insulation:PVC



     MARKING:

BAKU CABLE GOKNUR

Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
InsulationPVC
Conductor shapeCircular stranded
DIMENSIONAL CHARACTERISTICS
Number of cores1
Conductor cross-section400mm²
Nominal outer diameter29.0mm
Approximate weight3660kg/km
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
Permissible current rating in open air631A
Max. DC resistance of the conductor at 20°C0.047Ohm/km
USAGE CHARACTERISTICS
PackagingCoil
Operating temperature, range-20 .. 60°C
Short-circuit max. conductor temperature160°C
Length100m
Flame retardantEN 60332-1-2
Max. conductor temperature in service70°C

Specifications

Colour black, blue, brown, grey, pink, red, white, yellow, green, yellow/green
