Analoq 5000V Yüksək Gərginlikli İzolyasiya Test Cihazı, batareya və əl krank generatoru ilə ZETA 50 /50K/M/R

ZETA 50 / 50K / M / R

High-Voltage Insulation Tester

Product Overview

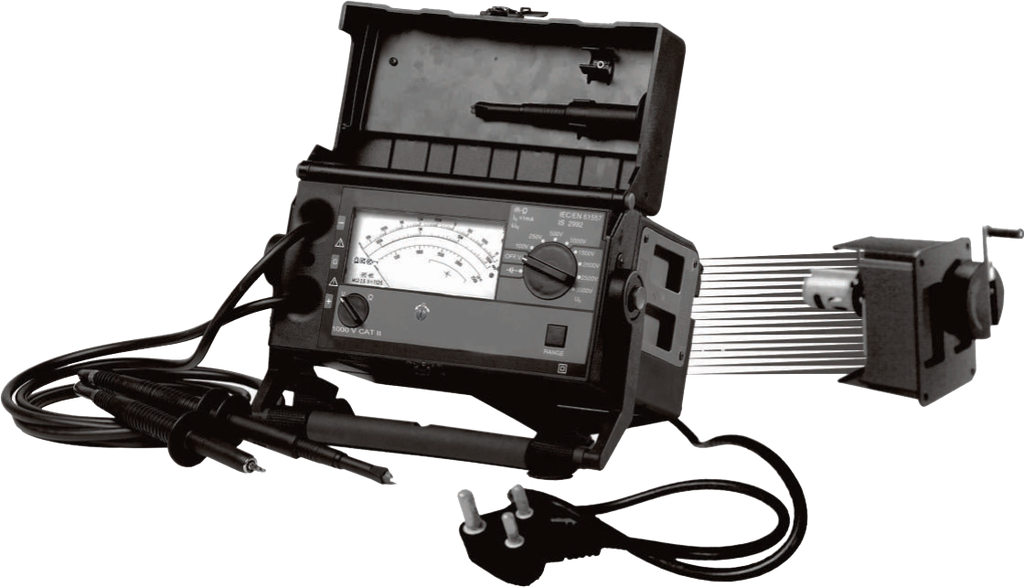

The ZETA 50 / 50K / M / R is a high-voltage insulation tester designed for the non-destructive measurement of insulation resistance in electrical systems, including machines, transformers, and cables. It operates using a rechargeable battery or a hand crank generator, with an optional mains operating mode.

Special Features

• Test Voltages: Up to 5000V
• Voltage Measurement: Up to 2000V
• Broad Measuring Range: From 10KW to 1TW
• Logarithmic Display: Easy to read
• Measurement Cables: Heavy-duty insulation with needle gauge and LEDs
• Capacitive Device Discharge: Automatic discharge during testing
• Power Supply Options: Battery, Crank Generator (optional), or Mains

Technical Specifications

Reference Conditions:

• Ambient Temperature: 0 to +23°C ± 2K
• Relative Humidity: 45 - 55%
• Line Voltage Frequency: 50Hz ± 10Hz
• Power Supply Voltage: 9V (Mains)

Electrical Safety:

• Protection Class: II
• Test Voltage: 8.5kV
• Overvoltage Category: 2000V CAT II or 5000V CAT I
• Protection: IP 52

Power Supply:

• Battery: 6x 1.5V single cell per IEC R20, Rechargeable (optional)
• Mains Supply: 230V AC ± 15%, 50Hz
• Crank Generator (Optional):
  • Nominal Voltage: 7.5V
  • Nominal Power: 4W
  • Operating Speed: 2 to 3 r.p.s

Mechanical Design:

• Dimensions (W x D x H): 290mm x 250mm x 140mm
• Weight: 3.4Kg (with batteries), 4.5Kg (Mains operated + Batteries)

Display:

• Type: Core-magnet moving coil mechanism
• Scale Length: 111.5mm

Measurement Ranges

• Insulation Resistance (Battery + Crank Generator):
  • Test Voltages: 100V, 250V, 500V, 1000V, 1500V, 2000V, 2500V, 5000V
  • Measuring Range: 100kΩ to 1TΩ
  • Voltage Measurement: 0 to 2000V AC/DC, 15 to 500Hz
  • Intrinsic Error: ± 5%

Standards Compliance:

• Safety Regulations: IEC 61010-1, EN 61010-1, VDE 0411-1
• Measurement Devices: IEC 61557, EN 61557, VDE 0413
• Electromagnetic Compatibility (EMC): IEC/EN 61326-1

Scope of Supply

• High-voltage insulation tester with permanently connected measurement cables and test probes
• 2 crocodile clips (5kV version)
• Plug-in battery module including batteries
• Carrying strap
• Operating instructions
• Test certificate
• Optional: Crank Generator, Rechargable Battery, Carrying Case, 3-pin Power Supply Cable
