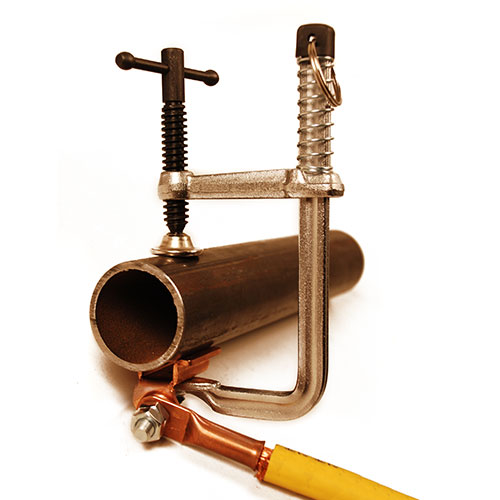

300A/— VİNTLİ QAYNAQ QISQACI STRONG HAND EUROPE GB428M
The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.
- Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable)
- Prevents current restriction and allows complete current transfer.
- Controls the electrical current by isolating the contact surface and the cable connection.
- Improve arc stability and cable life, and reduce power consumption.
| Part No. | Amperage / Cable Size (mm²) | Throat Depth (mm) | Max. Capacity (mm) | Tapped Hole | Clamping Pressure (kg) | OAL (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| GB428M | 300A / — | 64 | 75 | M6 | 100 | 180 | 0.4 |
