NHXMH 4x25mm² Cables

NHXMH 4x25mm² 300/500 V halogen free, flame retardant cables Baku Cable Goknur

This product has no valid combination.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

300/500 V halogen free, flame retardant cables

DESCRIPTION

APPLICATION:

Used in energy networks in hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, business centers where there is a risk of fire.

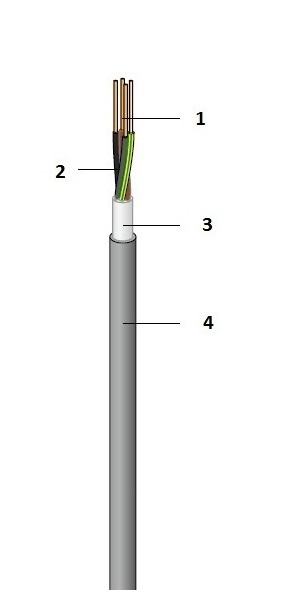

CONSTRUCTION:

Conductor:Copper
Insulation:XLPE
Filler:LSZH
Outer sheath:LSZH

MARKING:

BAKU CABLE GOKNUR

Characteristics

CONSTRUCTION CHARACTERISTICS
Conductor material Copper
Insulation XLPE (Cross-linked Polyethylene)
Outer sheath LSZH
Halogen free IEC 60754-1
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um) 300 / 500 V
USAGE CHARACTERISTICS
Operating temperature, range -20 .. 60°C
Flame retardant IEC 60332-3 Cat. C
Short-circuit max. conductor temperature 250°C
Smoke density IEC 61034
Gases corrosivity Low IEC 60754-2
Max. conductor temperature in service 90°C

CONSTRUCTION CHARACTERISTICS
Conductor material	Copper
Insulation	XLPE (Cross-linked Polyethylene)
Outer sheath	LSZH
Halogen free	IEC 60754-1
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)	300 / 500 V
USAGE CHARACTERISTICS
Operating temperature, range	-20 .. 60°C
Flame retardant	IEC 60332-3 Cat. C
Short-circuit max. conductor temperature	250°C
Smoke density	IEC 61034
Gases corrosivity	Low IEC 60754-2
Max. conductor temperature in service	90°C
